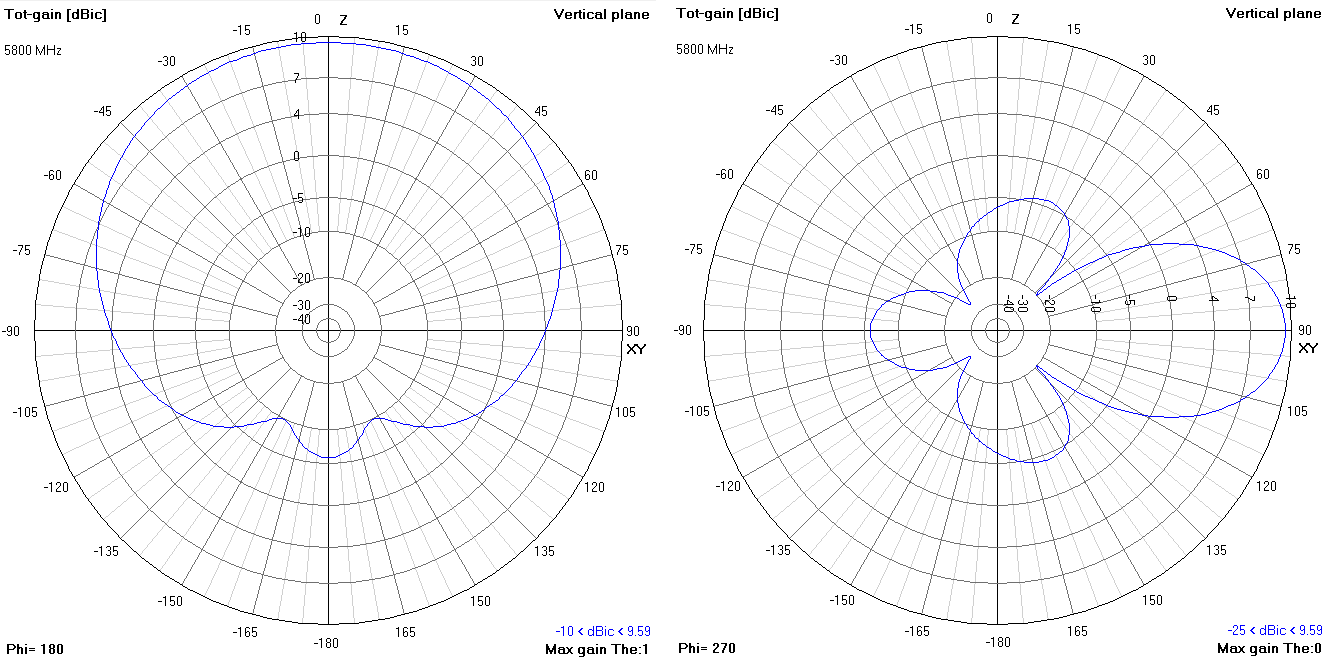

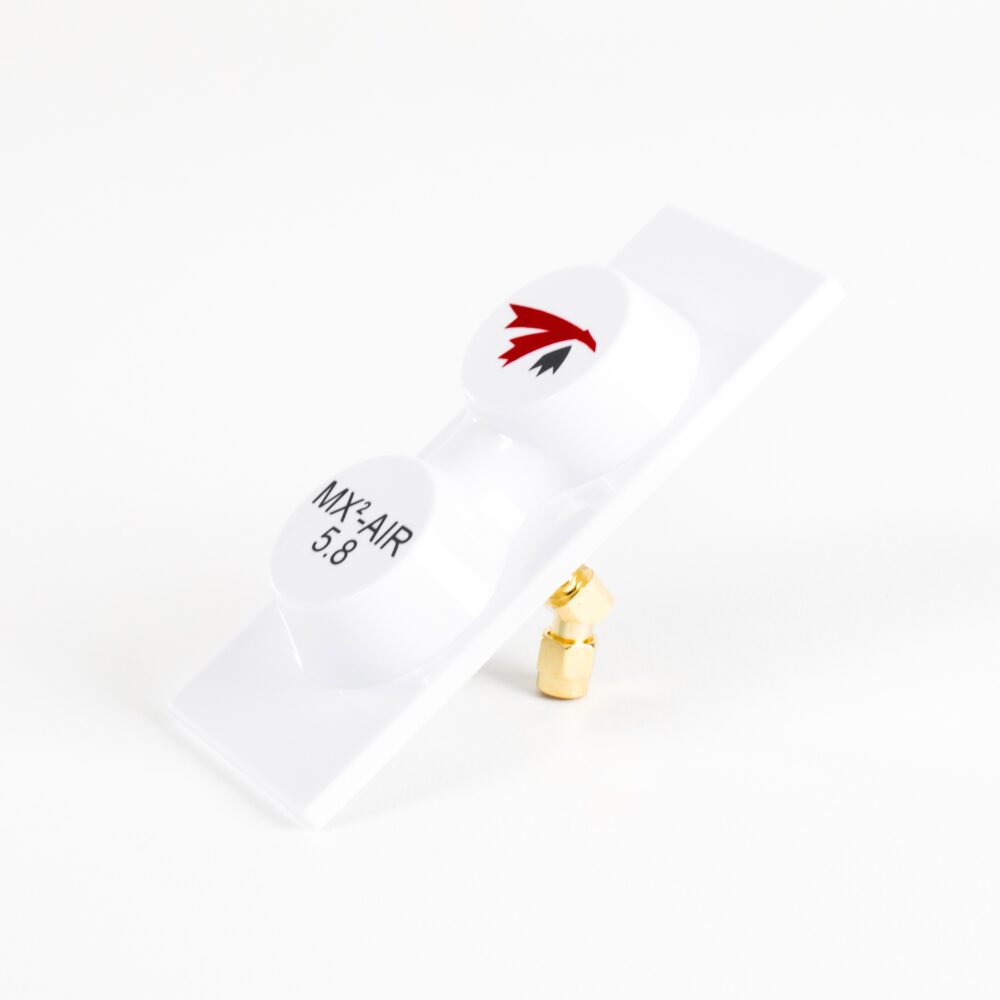

The MX2-air take the technology of the MX-air with a few added tweaks. The pattern is considerably widened at cost of some frontal gain of course. (Don’t let anyone tell you that you can have both). The result is a range at 90deg. bore-sight that is nearly quadrupled. Circularity in those area is also considerably cleaner. This make it the widest flight beam directional antenna available for FPV. Unlike the MX-air, this antenna is not hemispheric and thus cannot be used as an omni when pointed upward. Use vertical so widest part of the beam is horizontal.
- Bandwidth: 5.1GHz-6.0GHz
- Gain: 9.5 dBic
- Beam-width Horizontal*: 220deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 135deg.
- Vert. beam @-3dB**: 34deg.
- Connector: SMA
- Dimension: 104mm x 41mm x 30mm
- Weight: 32g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
