X-AIR 1.3

$84.99 (USD)

  • CAD: 117.29$

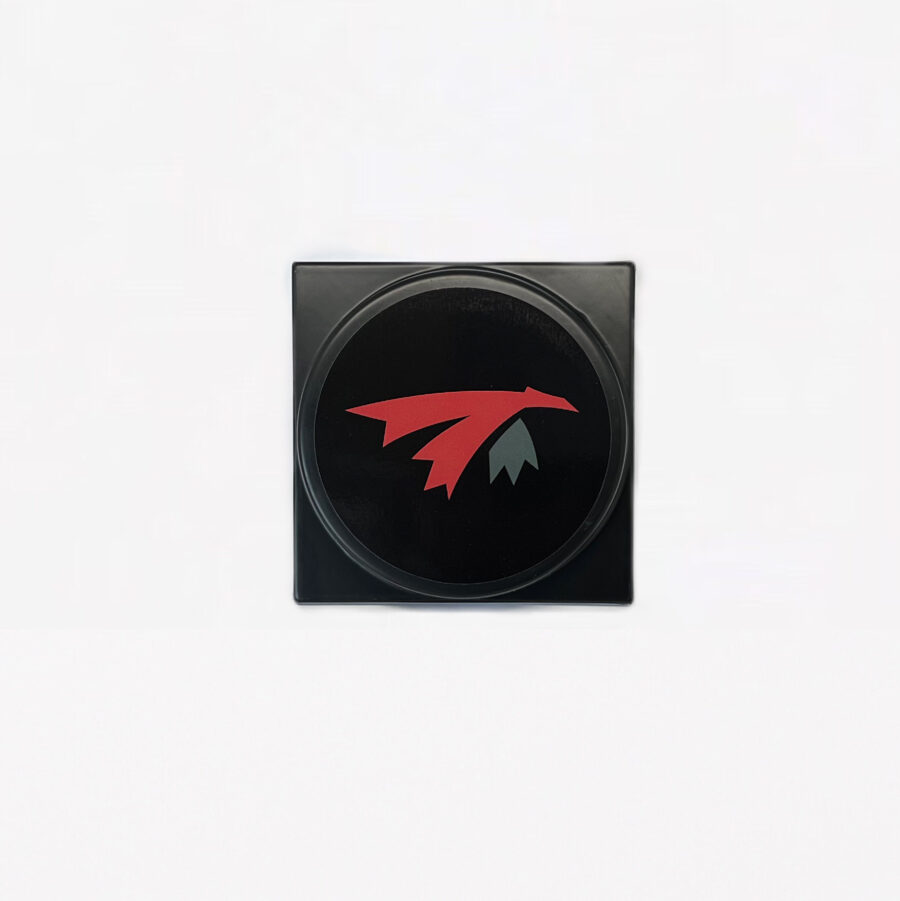

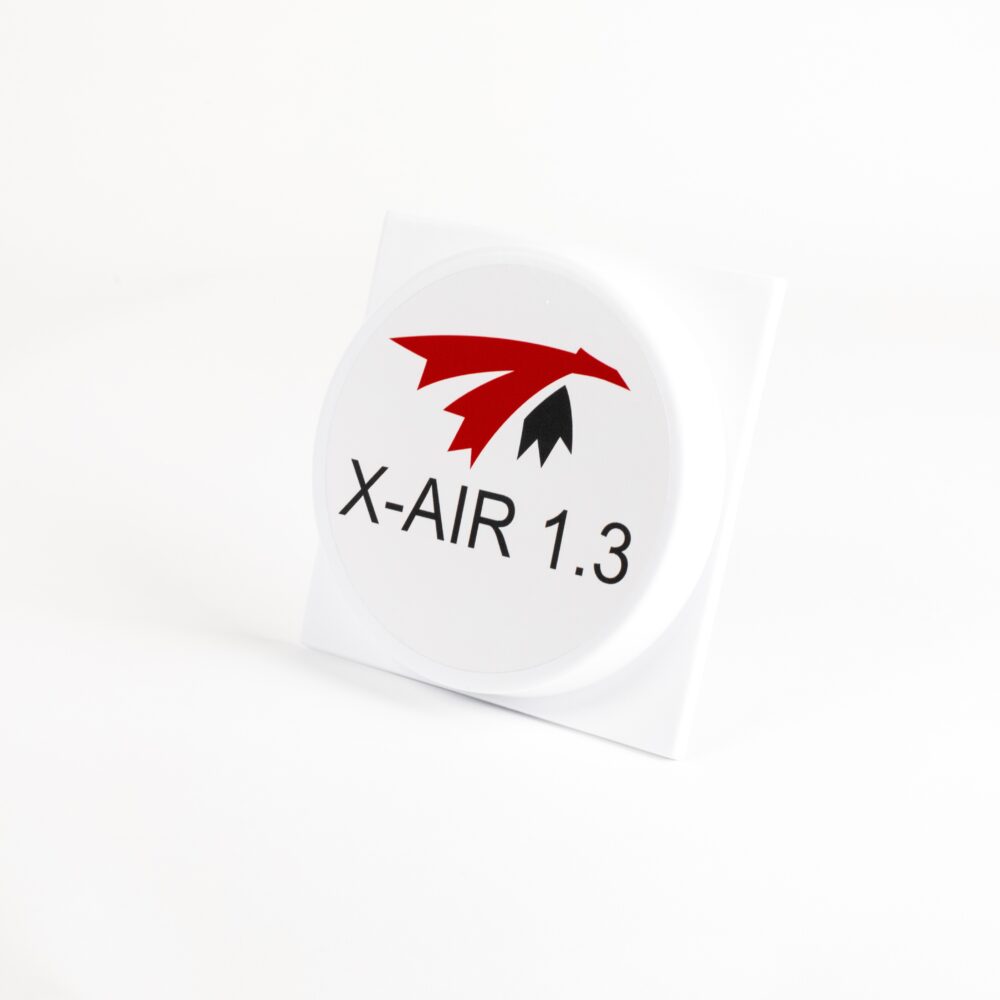

The new X-AIR 1.3 is our latest redesign of the crosshair antenna.

Description

The new X-AIR 1.3 is our latest redesign of the crosshair antenna. It put an end to the only downside of this type of antenna: their size. Almost 1/4 of the footprint of the original,  same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment. A 1/4-20 mounting point in the back, make that feather weight super easy to attach to your ground station.



Specs

  • Frequency: 1.3GHz
  • Gain: 10 dBic
  • Polarization: RHCP or LHCP
  • Radiation efficiency : 98%
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg
  • Connector: SMA male
  • Dimension: 152mm x 152mm x 30mm
  • Mounting: Standard 1/4-20 flush thread
  • Weight: 135g

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.



Useful print!

Additional information

Weight 0.154 kg
Dimensions 17 x 18 x 2cm
Polarization

LHCP, RHCP
