The Smol

19.99$

TrueRC in collaboration with TinyWhoop, are pushing the limits of FPV technology with this one of a kind. The Smol is the lightest 5.8GHz CP antenna known to mankind.

Clear

Description

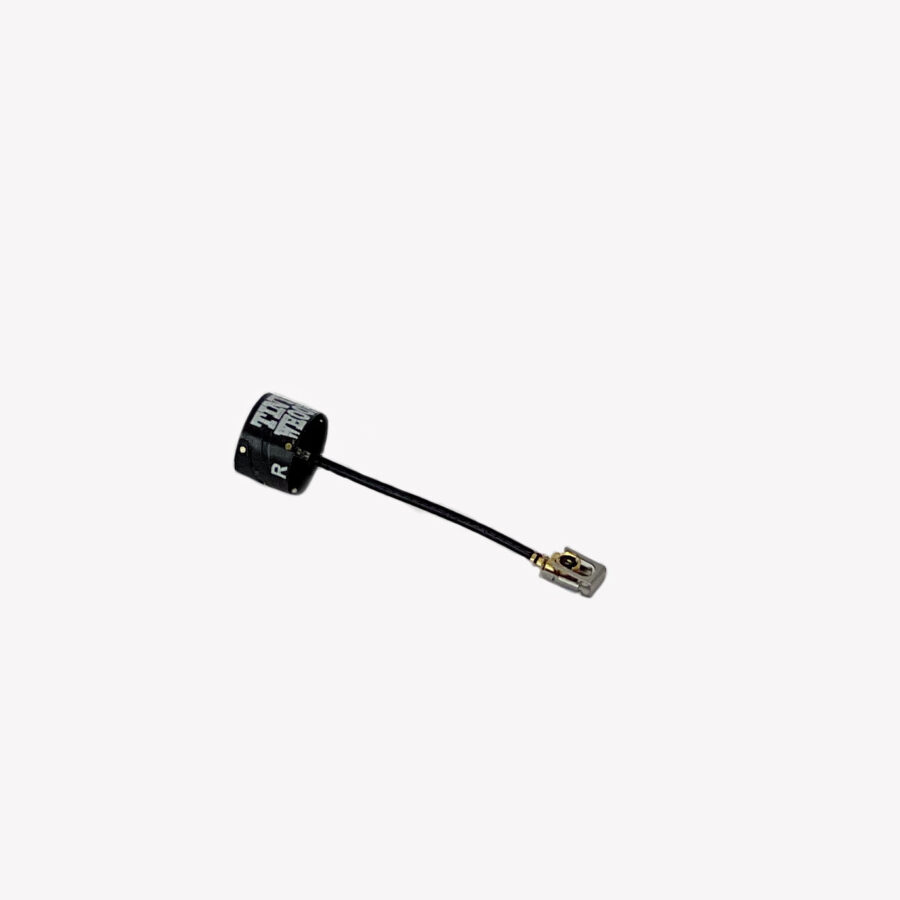

TrueRC in collaboration with Tiny Whoop, are pushing the limits of FPV technology with this one of a kind. The Smol is the lightest 5.8GHz CP antenna known to mankind. At a mere 0.25g, even the smallest aircraft will barely notice it! No compromise either, with same range as any of our other antennas.

Order yours at tinywhoop.com!

Features

  • Incredibly low weight of 0.25g (with 20mm u.fl)
  • Excellent axial ratio and efficiency
  • Same range as any full size/weight 5.8GHz CP antenna.



Specs:

  • Gain: 1.9dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -10 to -20dB, (3.2%)
  • Bandwidth: 5.6GHz-5.9GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.5:1
  • Weight: 0.25g
  • Dimensions: 9.5mm dia. x 6.4mm height.
  • Connector: U.FL





US. Pat. 10,804,618

Can. Pat. 2968566

Additional information

Weight 0.003 kg
Dimensions 3 x 2 x 2cm
Polarization

LHCP, RHCP

Connector & Cable

U.FL 20mm, U.FL 40mm
