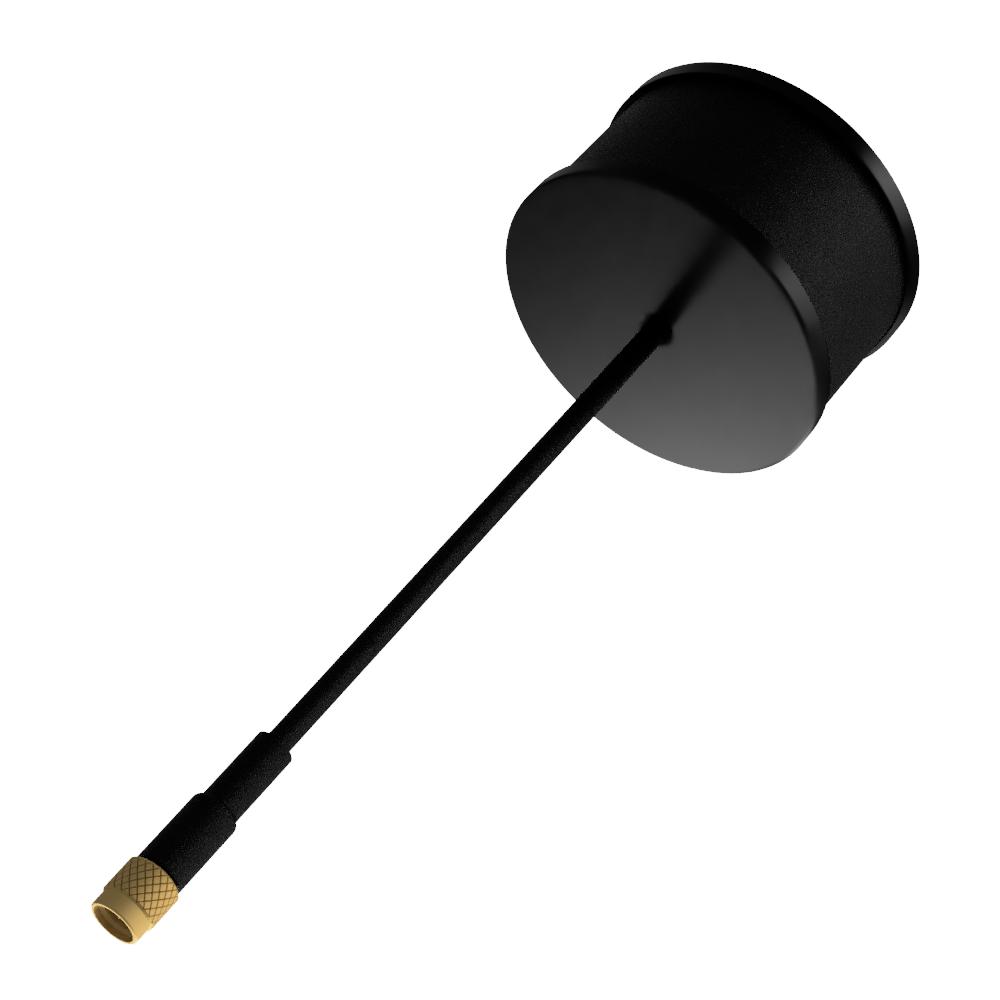

Singularity 915

Description

The next iteration of our popular singularity antenna, smaller, more rugged and more uniform pattern.



Specs:

• Gain: 1.9dBic
• Cross-Polar Rejection: -15 to -30dB, (2.2%)
• Bandwidth: 900MHz-935MHz
• Radiation Efficiency: 99%
• SWR: <=1.9:1
• Weight: 24g
• Dimensions(head): 59mm dia. X 35mm height.
• Length: 175mm
• Cable: RG402 coax.
• Connector: True-SMA .



US. Pat. 10,804,618 ‘

Can. Pat. 2968566
