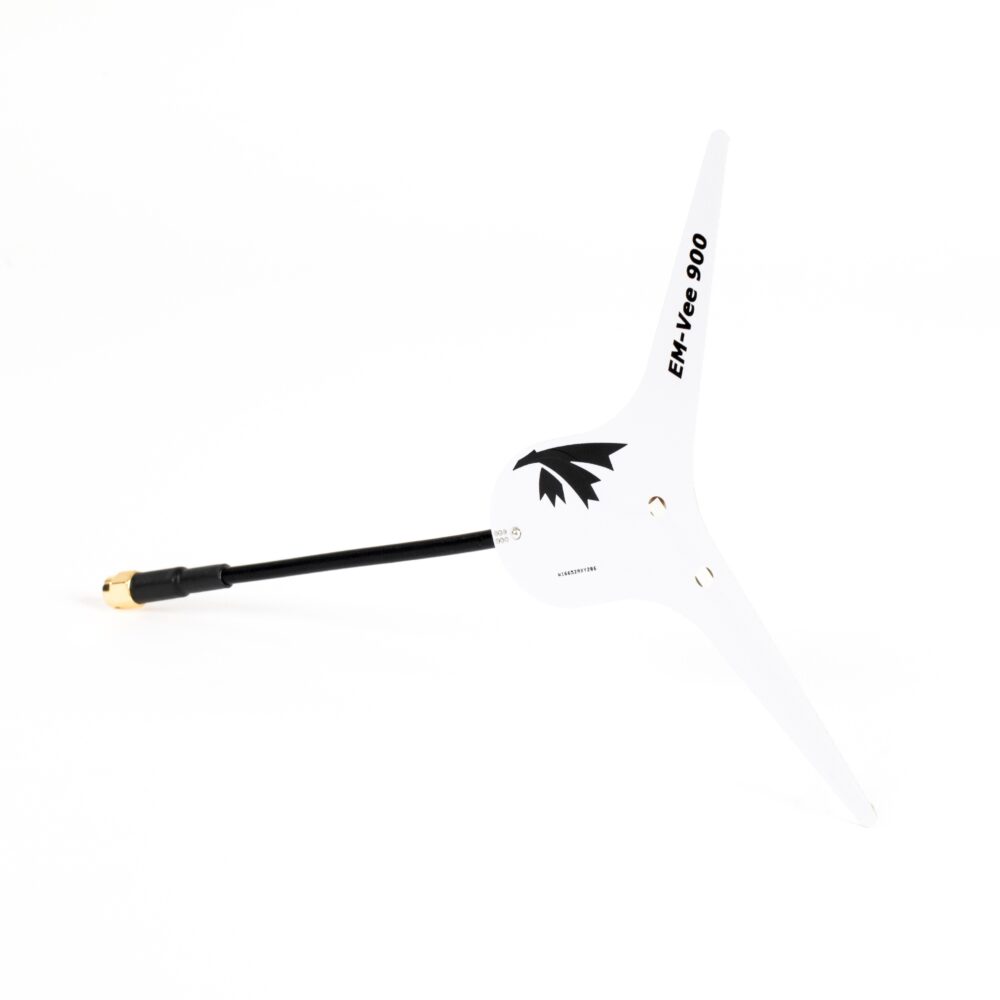

EM-Vee 900 SMA rigid

Description

The Vee is a sort of dipole bent to form a “V” of more or less angle. It yield a more uniform radiation pattern with nulls on top and bottom that aren’t as bad as the regular straight dipole.  We pushed it a little further with more pronounced angle that reduce nulls further, especially toward the bottom (under the logo).  Use directly on your TBS crossfire transmitter module.

Specs

• Frequencies: 868-930MHz
• Gain:1.7dBi
• Cable: Semi-rigid RG402
• Connector: SMA
• Dimensions: 135mm x 75mm (110mm cable)

Patent pending.

Note from the designer: We left two solder pads on each side of the antenna. They are to solder your own wires, either for repair or DIYer.
