LINE-AIR 1.3

Description

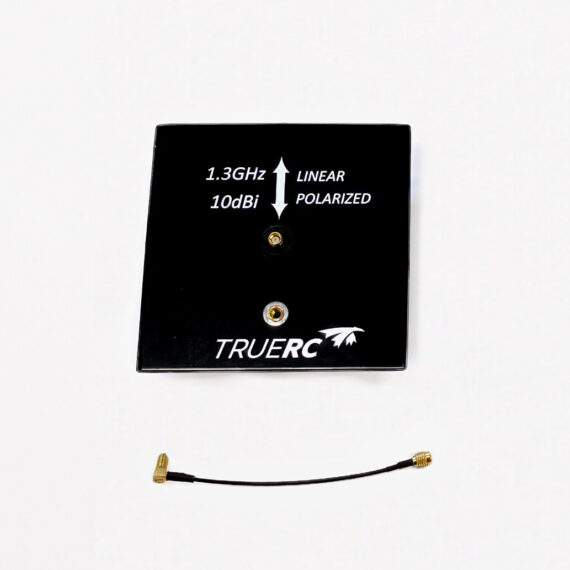

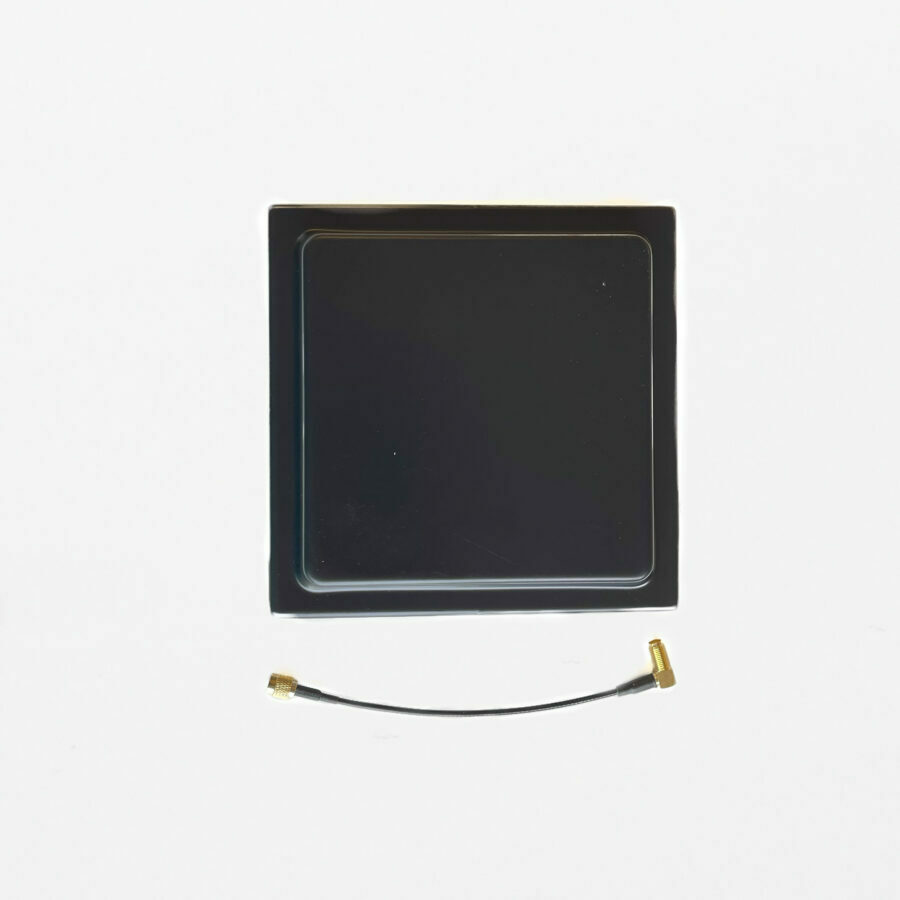

The Line-AIR 1.3  is our latest redesign of the biquad antenna. We managed to pack the famous biquad punch in less than half the typical size.  A 1/4-20 mounting point in the back, make that feather weight super easy to attach to your ground station.



Specs

• Frequency: 1230-1350MHz
• Gain: 10 dBic
• Polarization: Linear
• Radiation efficiency : 99%
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg
• Connector: SMA male
• Dimension: 152mm x 152mm x 27mm
• Mounting: Standard 1/4-20 flush thread
• Weight: 115g



*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
