matchstick 5.8 – Carbon

25.99$

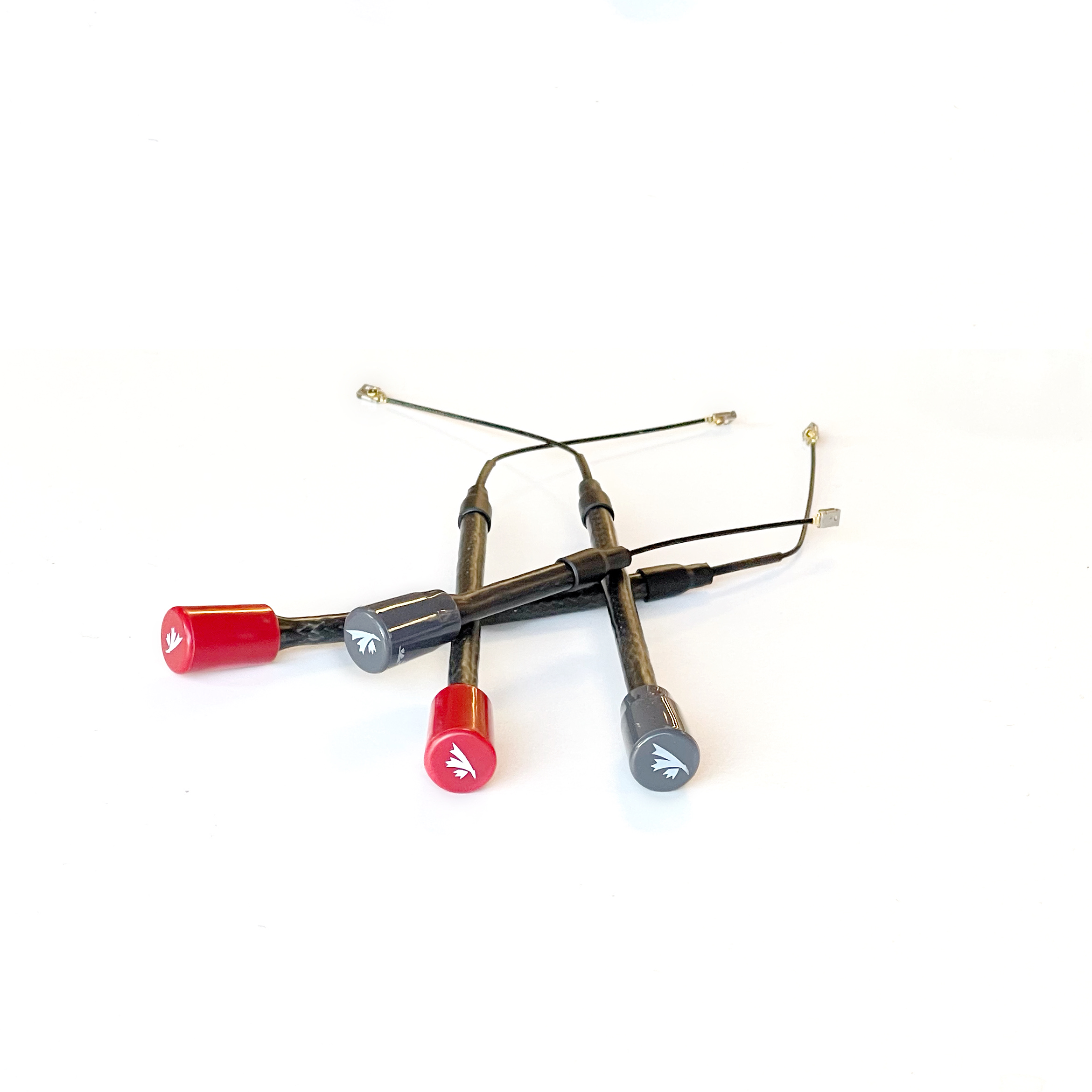

The matchstick 5.8 is a singularity using the hardened case of the stubby version and a real carbon fiber reinforced coax cable.

Clear

Description

The matchstick 5.8 is a singularity using the hardened case of the stubby version and a real carbon fiber reinforced coax cable. That make it our most durable ever antenna, ready to survive the worst.



Specs:

  • Gain: 1.9dbic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -15 to -30dB (1.9%)
  • Bandwidth: 5.6GHz-6.0GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.5:1
  • Weight (regular): 6.2 g
  • Weight (long): 7.8 g
  • Size (regular): 12.7mm x 70mm
  • Size (long): 12.7mm x 125mm
  • Cable: 100% carbon fiber reinforced
  • Connector: SMA. RP-SMA, U.fl



Useful print!

US. Pat. 10,804,618

Can. Pat. 2968566

Additional information

Weight 0.007 kg
Dimensions 15 x 8 x 1cm
Polarization

LHCP, RHCP

Connector & Cable

SMA regular, SMA long, U.FL 65mm, U.FL 115mm, RP-SMA, RP-SMA long, SMA extra-long (200mm)
