Gatling 1.3

299.99$

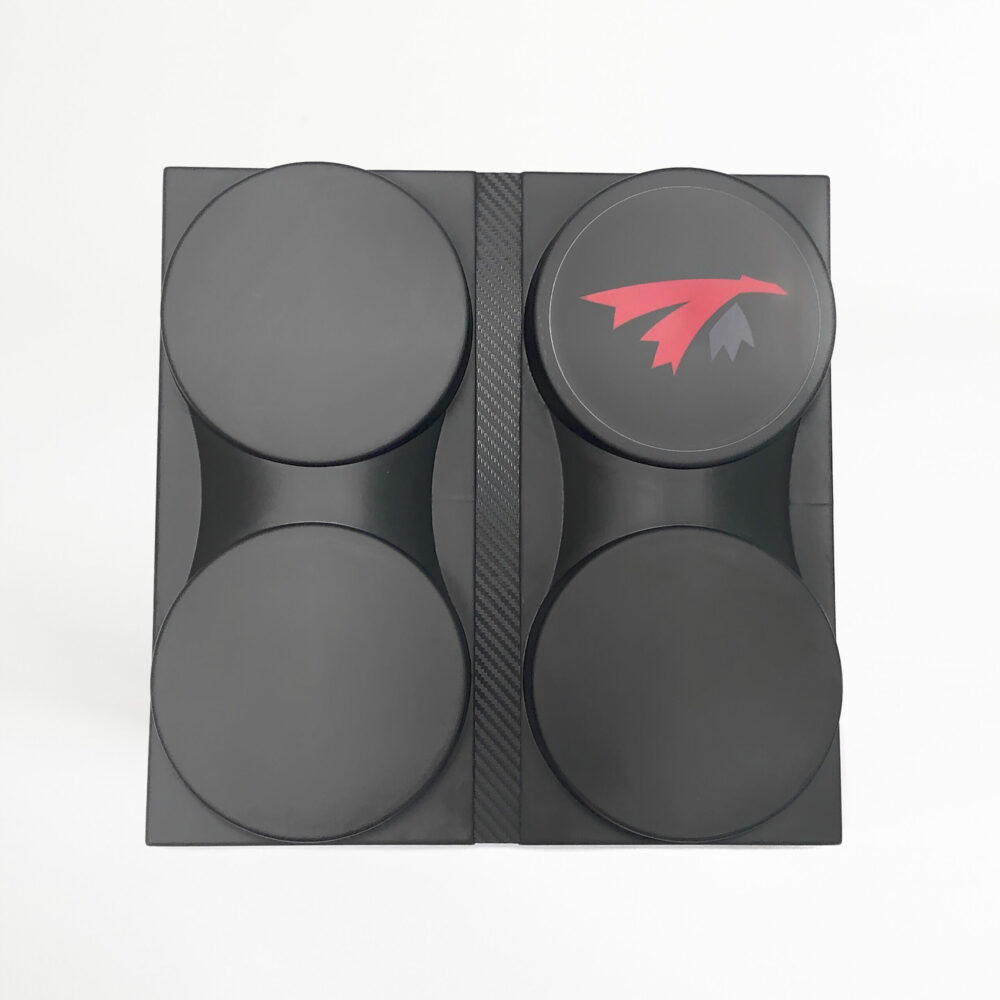

The new Gatling 1.3 use our latest redesign of the crosshair antenna. Smaller footprint, lighter weight and same great performance as the original.

Clear

Description

The new Gatling 1.3 use our latest redesign of the crosshair antenna. Smaller footprint, lighter weight and same great performance as the original. A 1/4-20 mounting point in the back, make it super easy to attach to your ground station.

Specs

  • Frequency: 1.200-1.360GHz

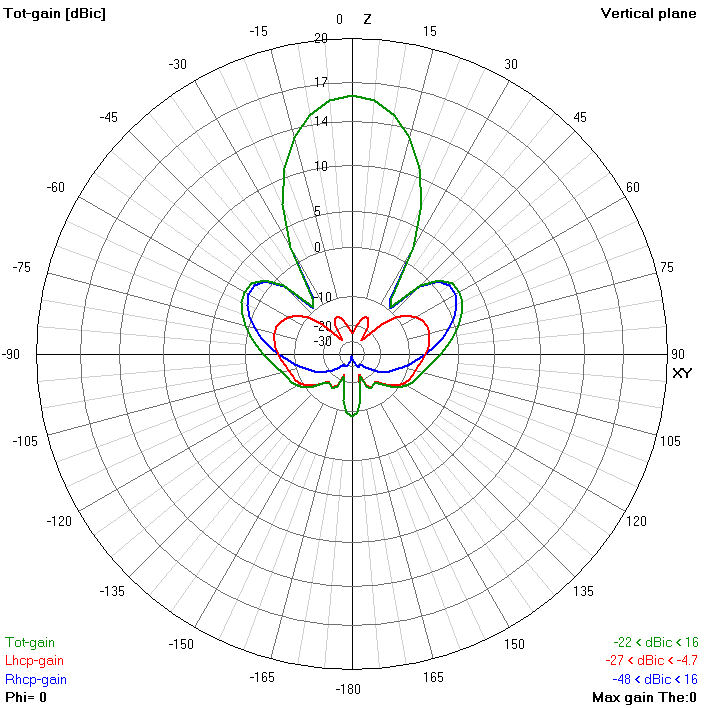

  • Gain: 16 dBic
  • Polarization: RHCP or LHCP
  • Radiation efficiency: 98%
  • Beam-width*: 66deg
  • Beam-width @-3dB**: 32deg.
  • Connector: SMA male
  • Dimension: 360mm x 360mm x 40mm
  • Mounting: Standard 1/4-20 thread
  • Weight: 650g

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Awesome video from Stuwe using the gatling 1.3 and singularity, enjoy!



Additional information

Weight 0.7 kg
Dimensions 36 x 36 x 5cm
Polarization

LHCP, RHCP
