X-AIR 5.8 MK II 4-pack for LetsFlyRC’s Faceplate

Description

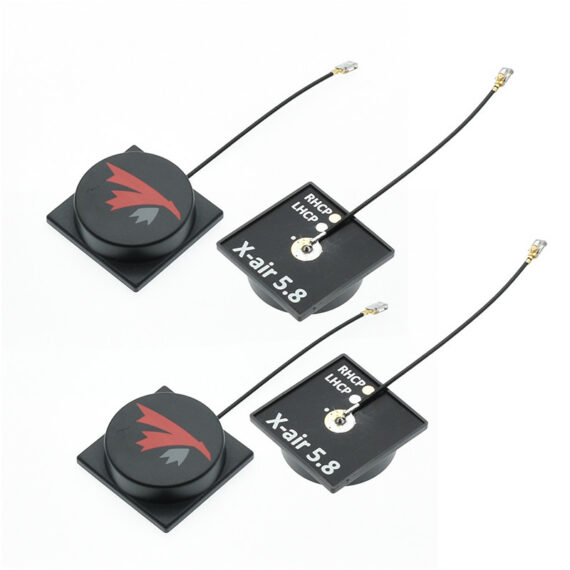

Special kit of four X-AIR 5.8 with U.FL cables to fit into LetsFlyRc’s 3D printed faceplate for the walksnail goggles.

Features

• Circularly Polarized
• Fit in LetsFlyRc’s faceplate for Walksnail avatar or Fat Shark dominator
• Compact low-profile design, easy to store and transport
• High 10 dBic for long range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Super wide 120 degree beam
• Custom knurled RP-SMA connectors



Specs

• Bandwidth: 5.1GHz-6.7GHz
• Gain: 9.5-10.5 dBic
• Polarization: RHCP or LHCP
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg.
• Connector: U.FL
• Dimension: 32 x 32 x 16mm



*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.



Includes:

• Four X-air MKII antennas.



Useful print!

• Dominator – Avatar Goggle Faceplate for internal True RC crosshair antennas
