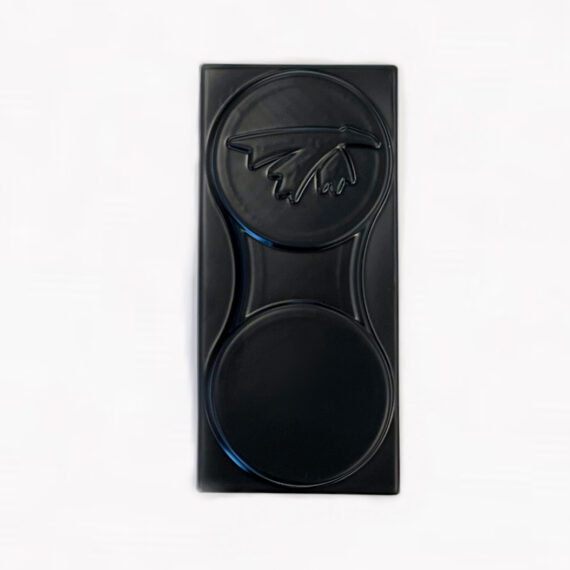

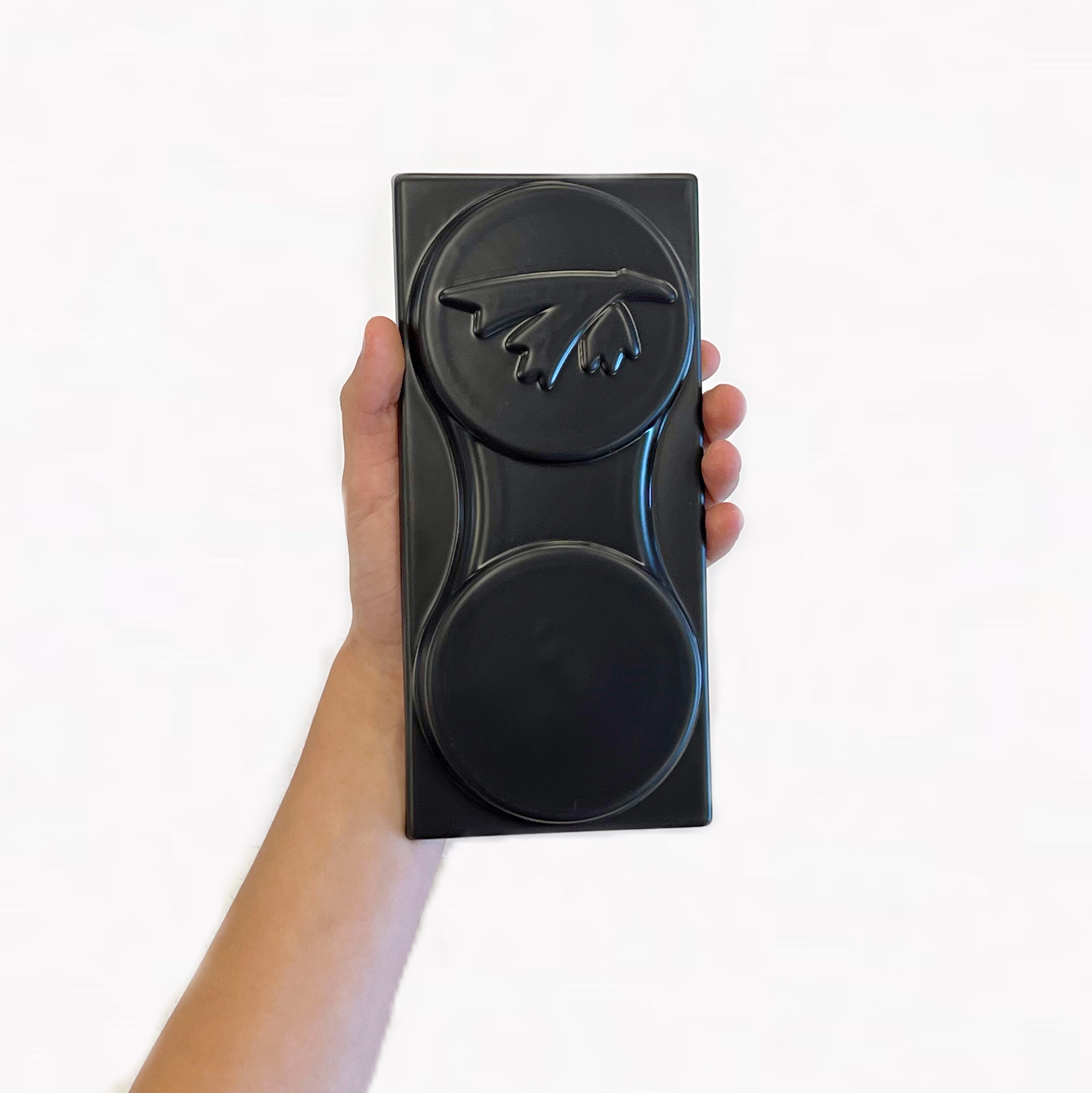

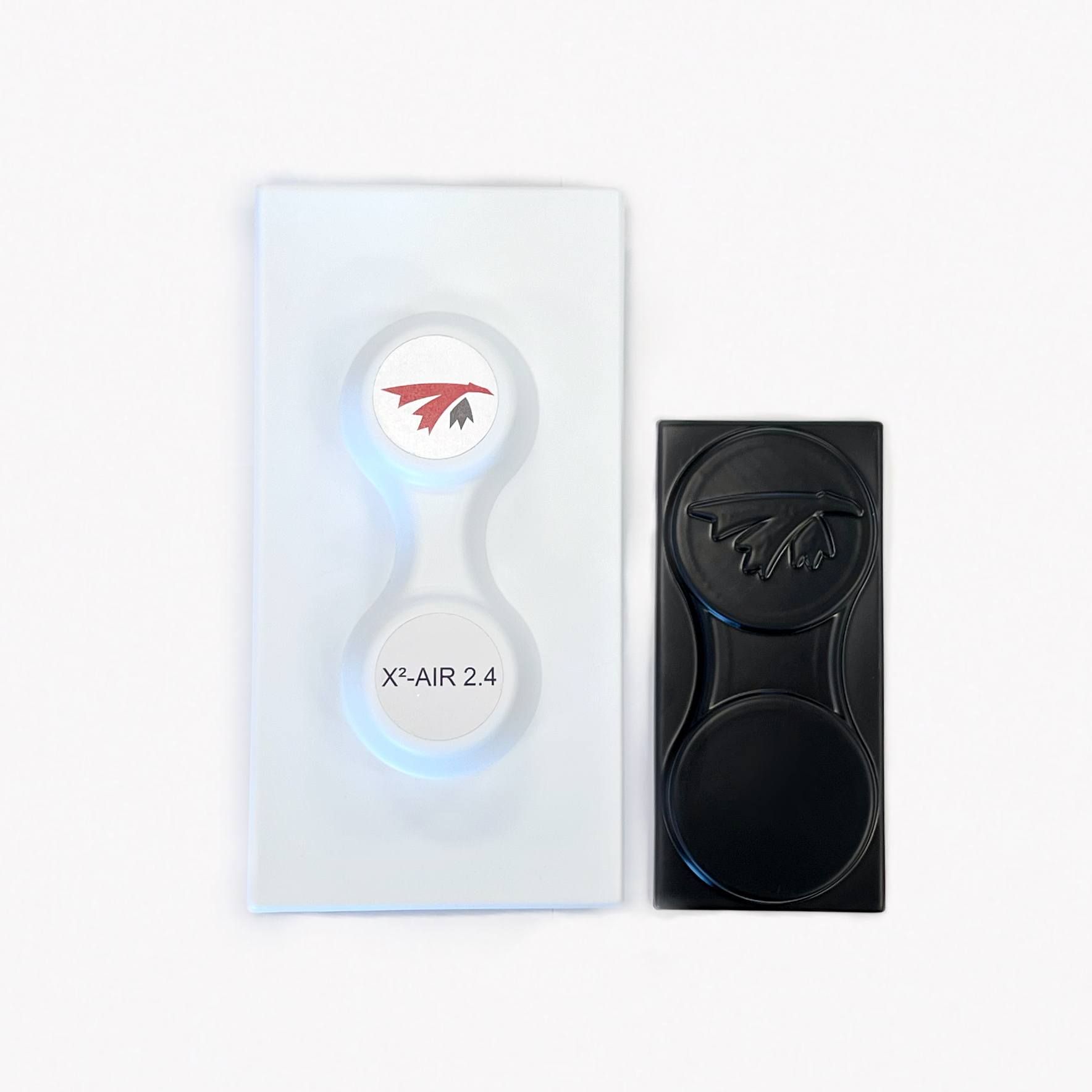

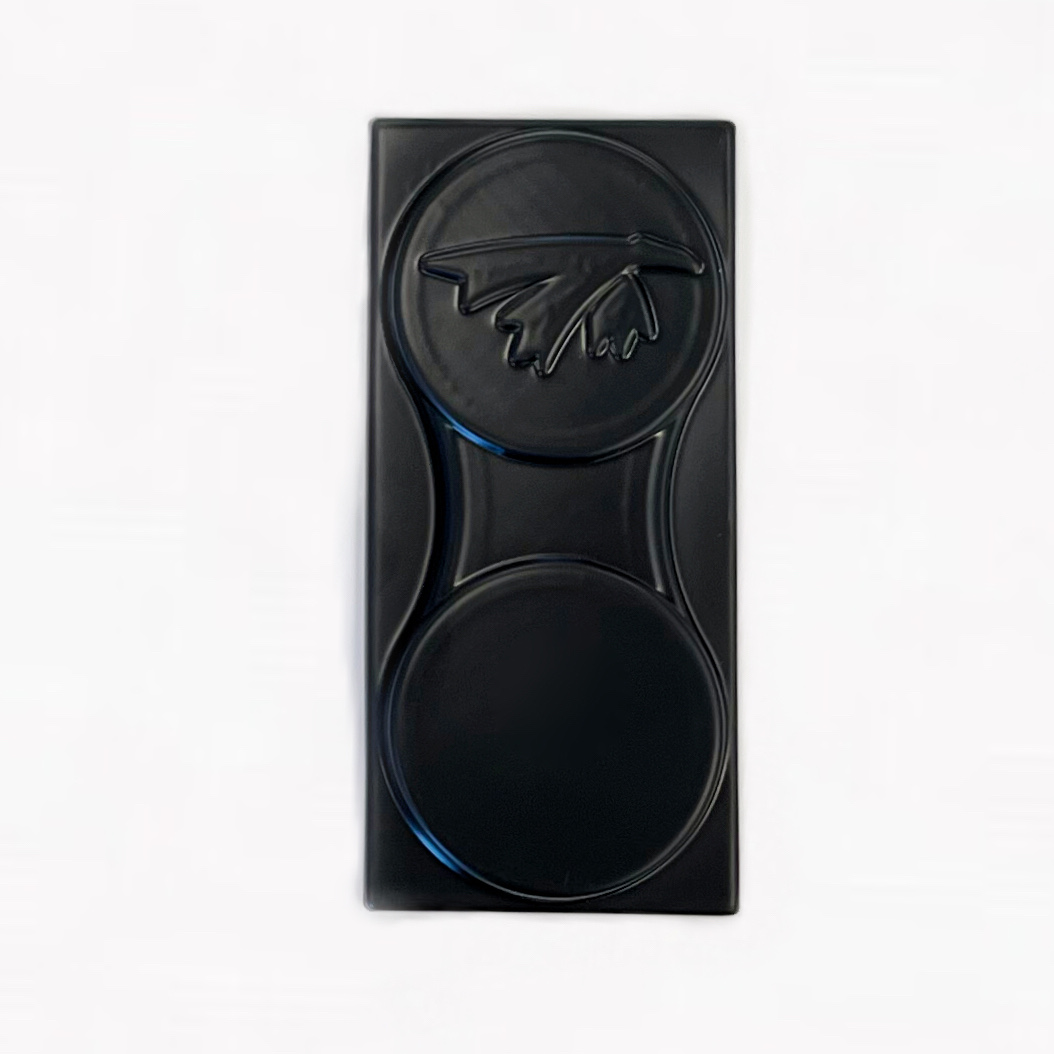

X²-AIR 2.4 MK II

Description

Following on the latest improvement of the X-AIR 2.4 MK II, this shrunk down X²-AIR is nothing less than the original beside its size. Bringing the high gain and wide horizontal beam in a new compact and light package.

Specs

• Frequencies: 2.3-2.7GHz
• Gain: 12.5 to 13 dBic
• Beam-width Horizontal*: 150deg
• Beam-width Vertical*: 62deg
• Hor. beam @-3dB**: 74deg.
• Vert. beam @-3dB**: 34deg.
• Connector: SMA
• Dimensions: 179.5mm x 83.5mm x 25mm l

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
