X-AIR 2.4 MK. II

54.99$ (USD)

  • CAD: 75.78$

The X-AIR2.4 Mk. II is our latest redesign of the X-AIR 2.4 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size

Description

The X-AIR 2.4 Mk. II is our latest redesign of the X-AIR 2.4 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment.  Mount it right on any orientation with the included low loss 5cm semi-flexible extension.

Specs

  • Bandwidth: 2.3GHz-2.6GHz
  • Gain: 9.5-10 dBic
  • Polarization: RHCP or LHCP
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg.
  • Connector: SMA male
  • Dimension: 82 x 82 x 24mm

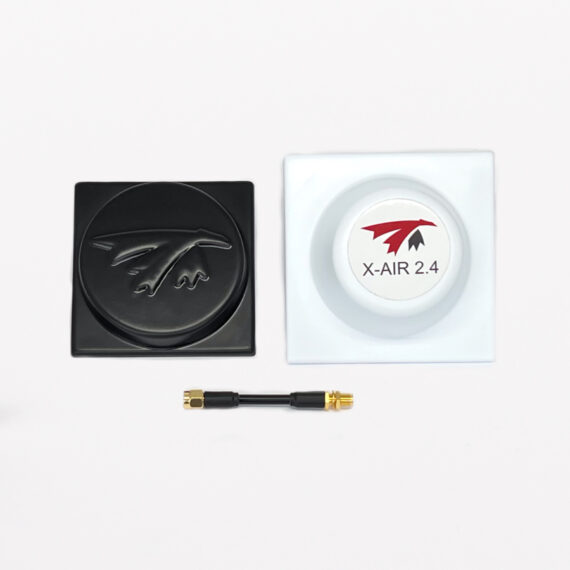

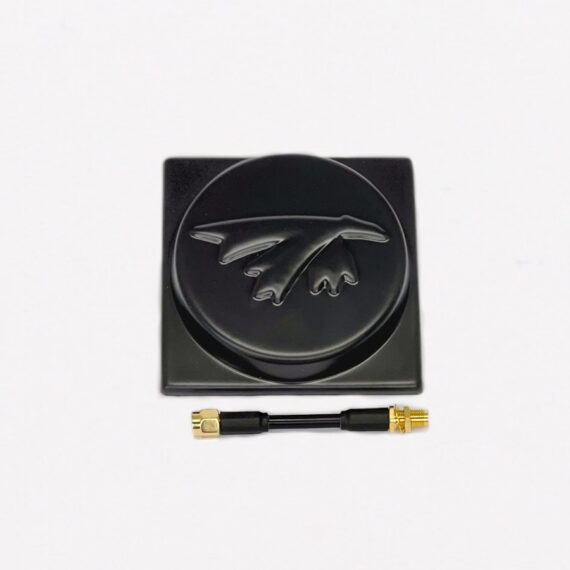

  • Include low loss 5cm semi-flexible extension

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Additional information

Weight 0.526 kg
Dimensions 31.5 x 24 x 17cm
Polarization

LHCP, RHCP
