X-RAY 5.8

$149.99 (USD)

  • CAD: 208.97$

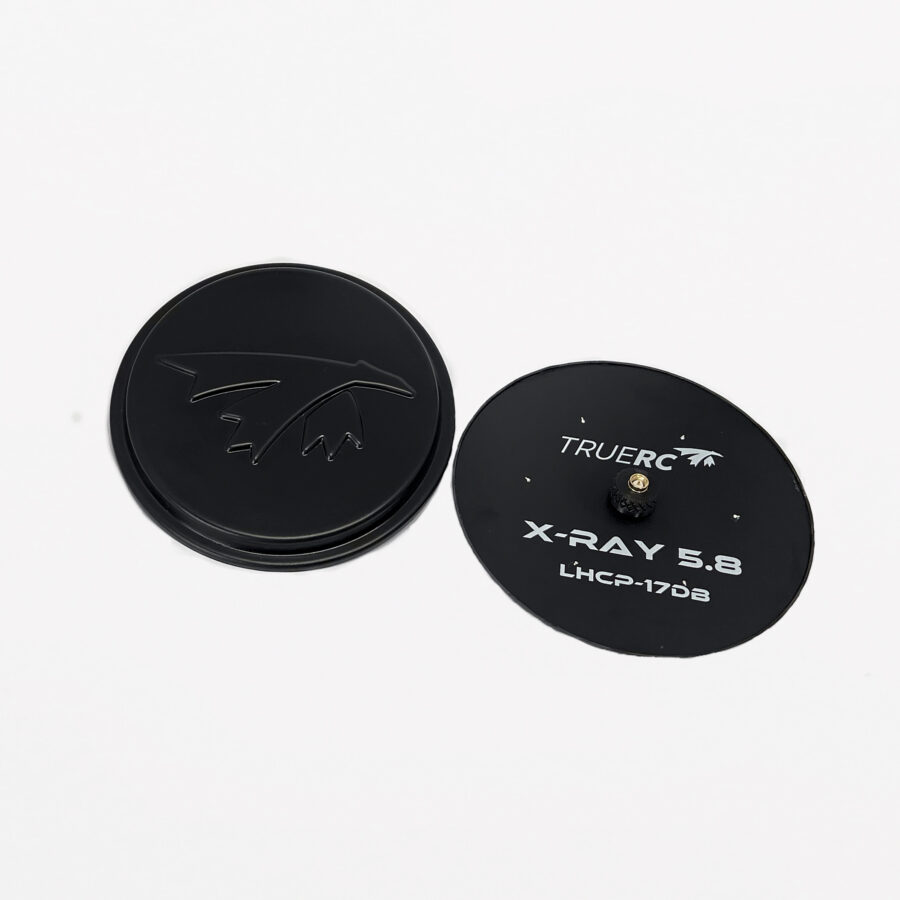

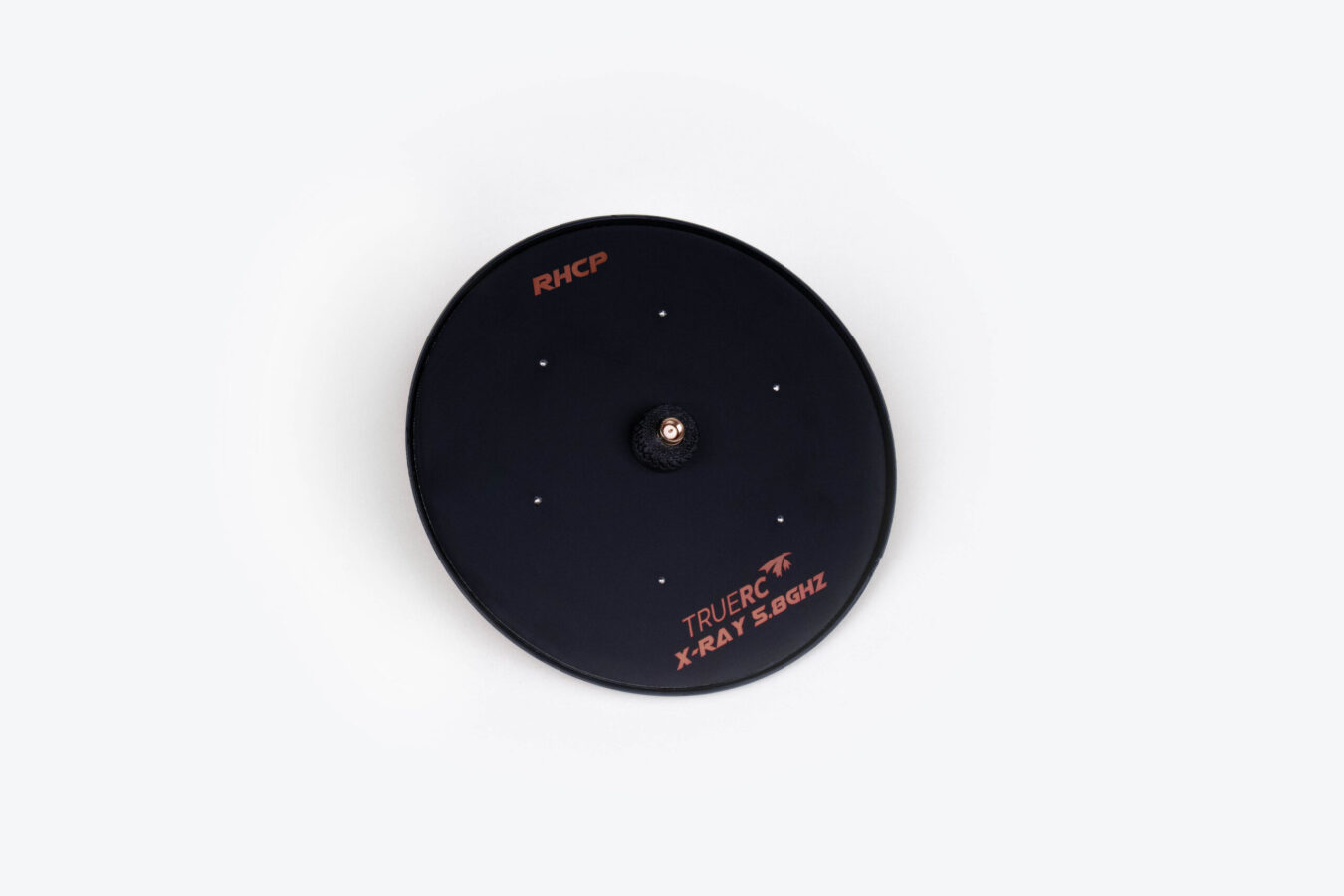

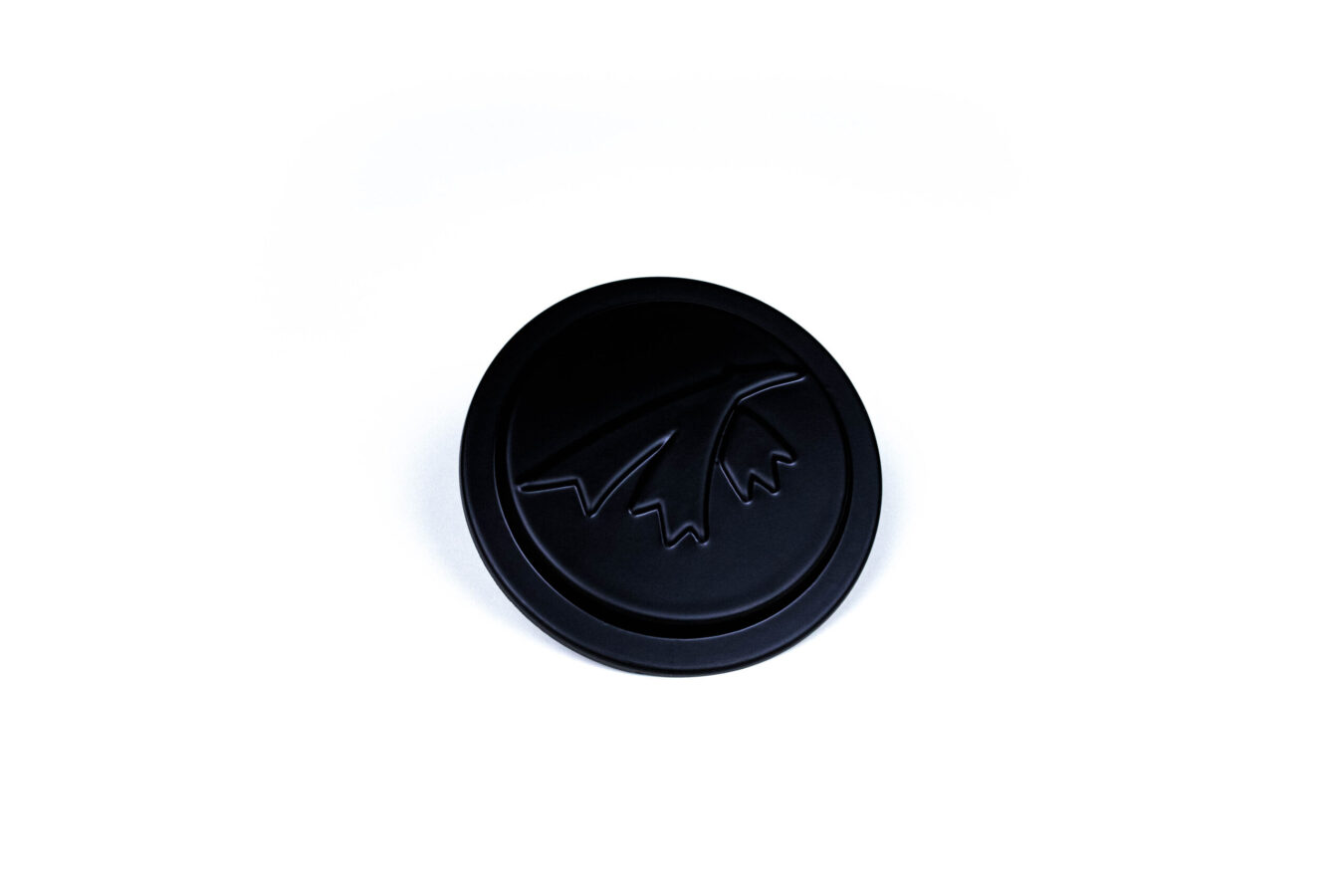

The X-RAY 5.8 is a new development of our X-AIR technology. A single feed panel format with very low side lobes, maximizing main lobe efficiency.

Description

The X-RAY 5.8 is a new development of our X-AIR technology. A single feed panel format with very low side lobes, maximizing main lobe efficiency. Achieving up to 18dBic over a single element in a simple clean and thin format, the X-RAY is the physical expression of TrueRC’s design philosophy.



Features

  • Very low side lobes and excellent front to back ratio.
  • Excellent axial ratio and efficiency over a large bandwidth



Specs

  • Frequency: 5.4-6GHz ‘

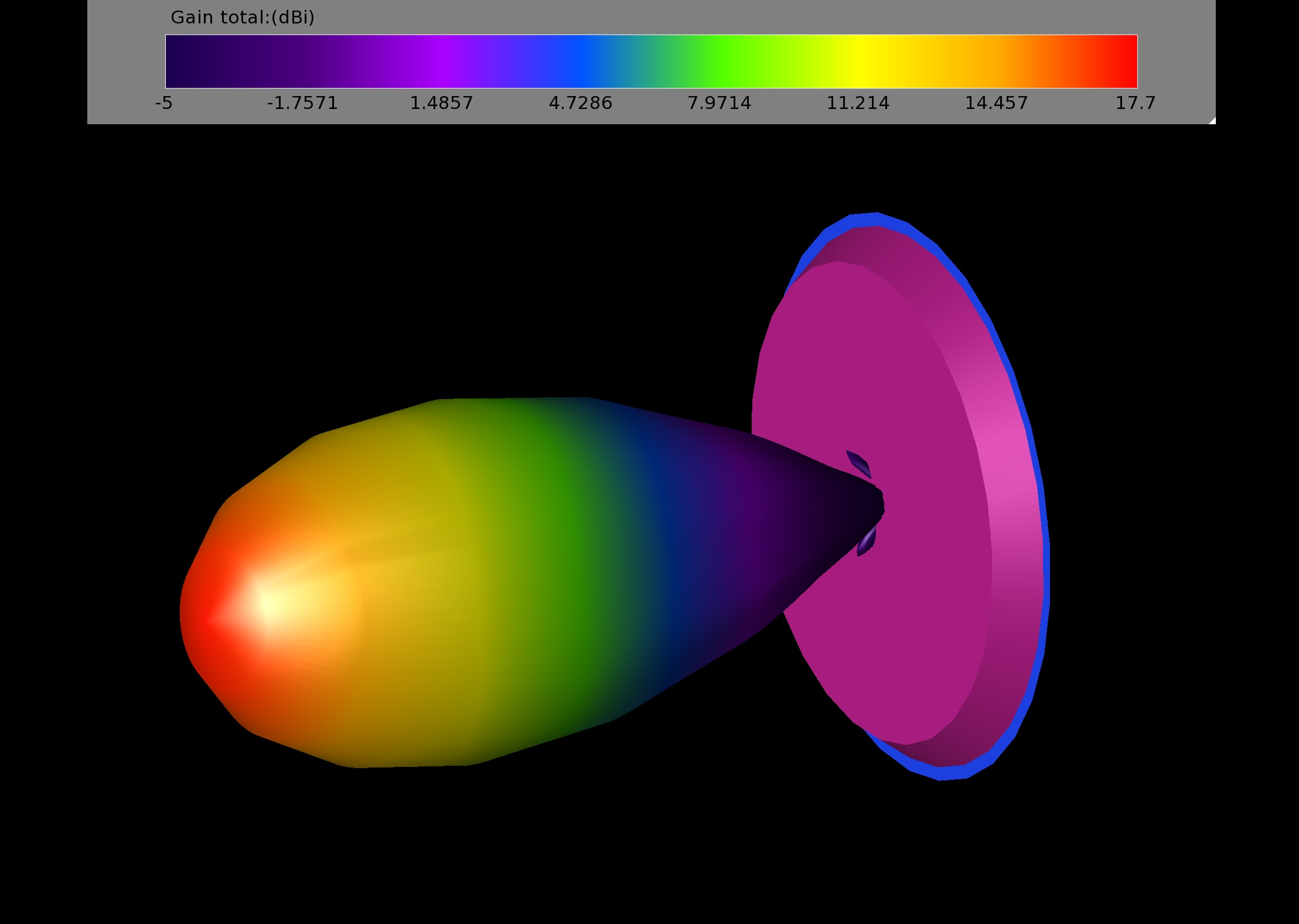

  • Gain: 17-18 dBic
  • Polarization: RHCP or LHCP
  • Beam-width*: 60deg
  • Beam-width @-3dB**: 24deg.
  • Connector: SMA
  • Dimensions: 151mm dia. x 20mm
  • Weight: 82g



*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.



Additional information

Weight 0.120 kg
Dimensions 12 x 12 x 7cm
Polarization

LHCP, RHCP

Reviews

  1. jonriddick6

    How many watts of input power does the antenna support?

    • Hugo Chamberland

      50W
