CORE 5.8 – Side feed

$14.99 (USD)

  • CAD: 20.51$

This one is a special version with side exit cable, great to bury inside an airplane’s wing or fuselage.

Description

This one is a special version with side exit cable, great to bury inside an airplane’s wing or fuselage. The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This  omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. We then added a very durable outer shell that protect the antenna from the inevitable crashes.

Features

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Smooth radiation pattern with even gain in all directions
  • Excellent axial ratio and efficiency
  • Side exit cable for novel mounting options
  • Exclusive knurled True-SMA for easy tightening



Specs:

  • Gain: 1.9dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -10 to -20dB, (3.2%)
  • Bandwidth: 5.5GHz-6.1GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.2:1
  • Weight: Vary with connector/cable option
  • Dimensions(head): 16.9mm dia. x 13.1mm height.
  • Length: Vary with cable option
  • Cable: TrueRC RG178 coax
  • Connector: Reinforced True-SMA/90 male, U.FL, MMCX/90



Useful print!



US. Pat. 10,804,618

Can. Pat. 2968566

Additional information

Weight 0.007 kg
Dimensions 15 x 8 x 0.5cm
Polarization

RHCP, LHCP

Connector&Cable

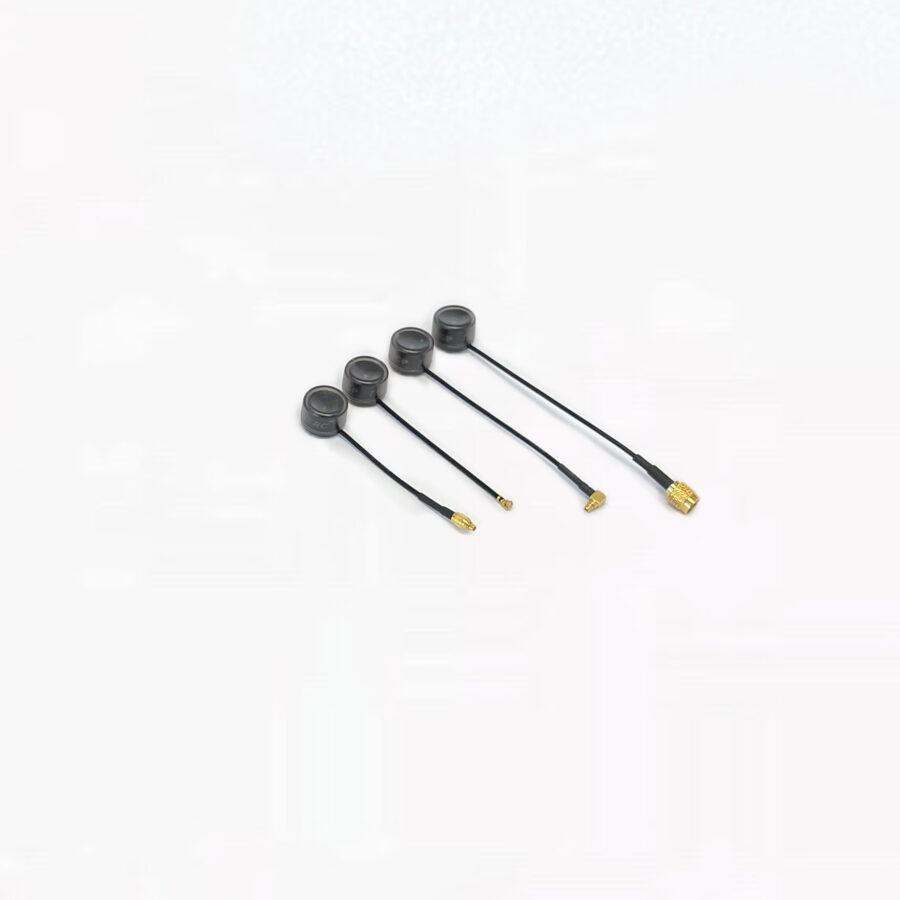

U.FL 45mm, U.FL 85mm, MMCX 85mm, MMCX90 85mm, MMCX90 125mm, SMA 80mm, SMA 125mm, SMA 160mm, RP-SMA 80mm, RP-SMA 125mm, RP-SMA 160mm, SMA90 145mm, SMA flex 80mm, SMA flex 125mm, U.FL side feed 85mm, U.FL side feed 205mm, MMCX side feed 85mm, MMCX90 side feed 85mm, SMA side feed 100mm
