BLAZE 5.8 (Cosmetics Defects)

$8.99 (USD)

  • CAD: 12.30$

Featuring our latest high fidelity* circular polarized design, added of a CREE XQ-E high intensity LED, the BLAZE 5.8 is no ordinary antenna.


Featuring our latest high fidelity* circular polarized antenna design added of a CREE™ XQ-E high intensity LED, the BLAZE 5.8 is no ‘ ordinary antenna. It is a high performance CP omni doubling as a powerful LED light. Thanks to an advanced RF design and heat ‘ ‘ management, this antenna possibly outshines anything in both the 5.8GHz and visible spectrum.


  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing.
  • CREE™ XQ-E high intensity LED.
  • Wider Bandwidth (5.4-6.3GHz).
  • *Pattern stay true even in harsh/sub-optimal installations.
  • Single wire 5V LED power hookup with micro connector.
  • Available in red, green, blue and white.
  • Available with True-SMA connector.
  • Available with high quality dji compatible MMCX.
  • Available with support tube and U.fl pigtail (vista).

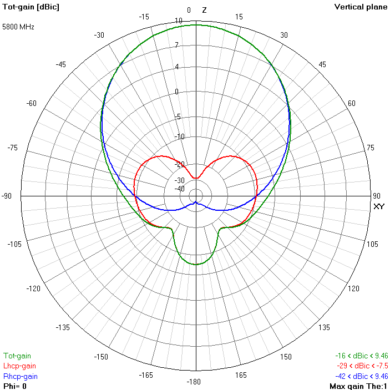

  • Gain: 1.9dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -15 to -30dB, (1.9%)
  • Bandwidth: 5.4GHz-6.3GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.2:1 ‘
  • Weight: 7.9 g
  • Dimensions(head): 16.5mm dia. X 10.7mm height.
  • Length: 80mm to 125mm.
  • Cable: Heavy-duty semi-rigid RG402 coax or custom RG316S.
  • Connector: True-SMA, MMCX90 or U.fl w/support tube (Vista)
  • Current draw: 100-110mA with included resistor.
  • Max current: 400mA.
  • Supply voltage: 5V with included resistor.
  • l Approx luminous flux @100mA: 20 to 50 Lumen depending on color.


  • 1x Antenna.
  • 12 or 18ohms resistor depending on color.
  • Micro power connector.
  • Heat shrink.


US. Pat. 10,804,618

Download manual

3D print a tpu cover to tint white LED the color you like.

Installation video by Conrad Furadi:

Additional information

Weight 0.007 kg
Dimensions 12 x 7 x 0.5cm



Red, Green, Blue, White

Connector & Cable

SMA regular 72mm, SMA long 110mm, MMCX90 regular 72mm, MMCX90 long 110mm, U.fl (vista), U.fl long 110mm (vista), U.fl regular 45mm (vista)
