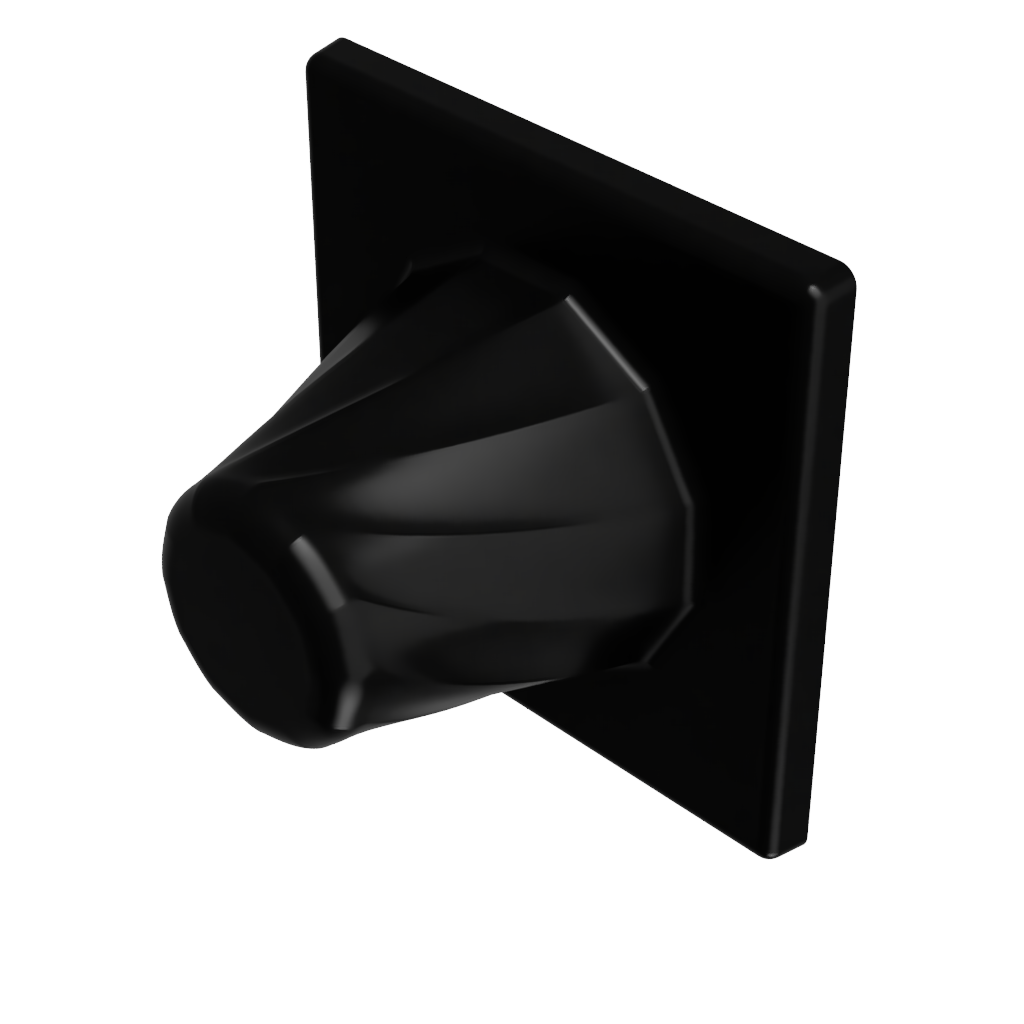

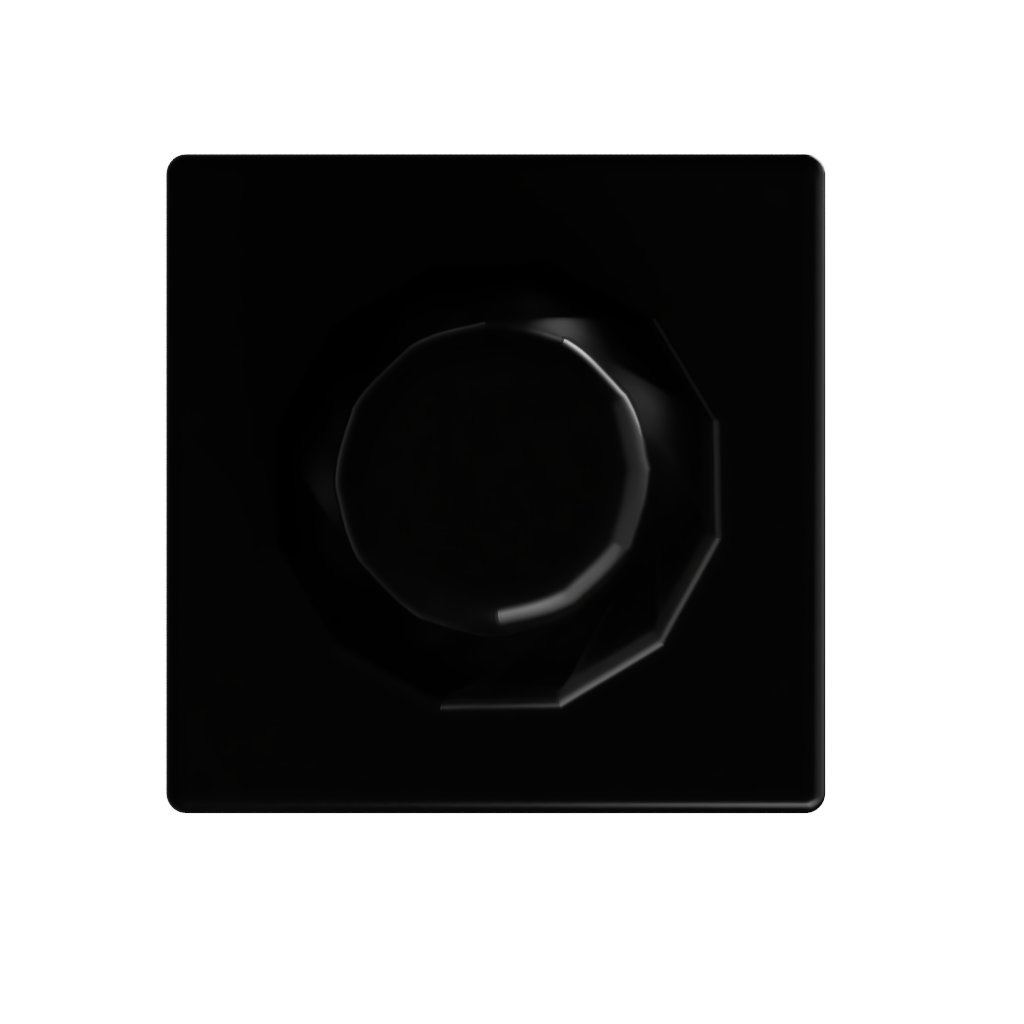

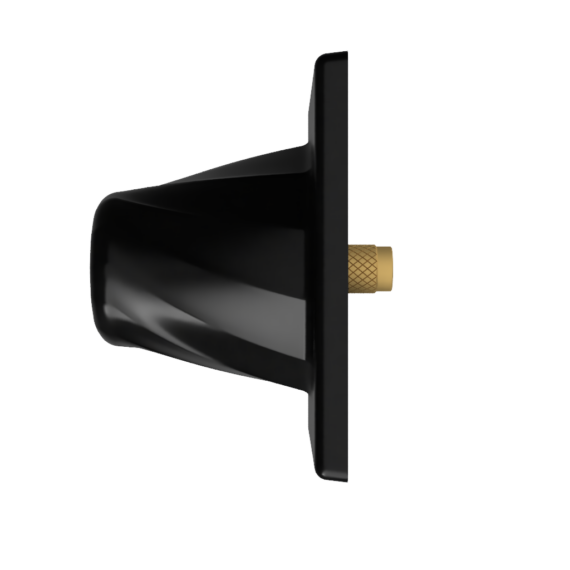

SNIPER 5

Description

The Sniper 5 is the same great antenna as the Sniper 5.8 but scaled for lower band 4.8-5.5GHz operation



Features

• Small size versus gain
• Excellent axial ratio and efficiency over a large bandwidth



Specs

• Frequency: 4.8-5.5GHz ‘
• Gain: 13.5dBic
• Polarization: RHCP or LHCP
• Beam-width*: 60deg
• Beam-width @-3dB**: 45deg.
• Connector: SMA

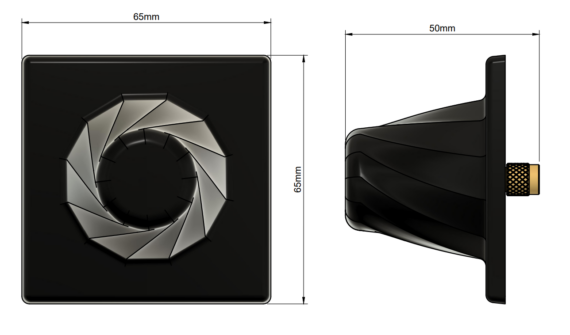

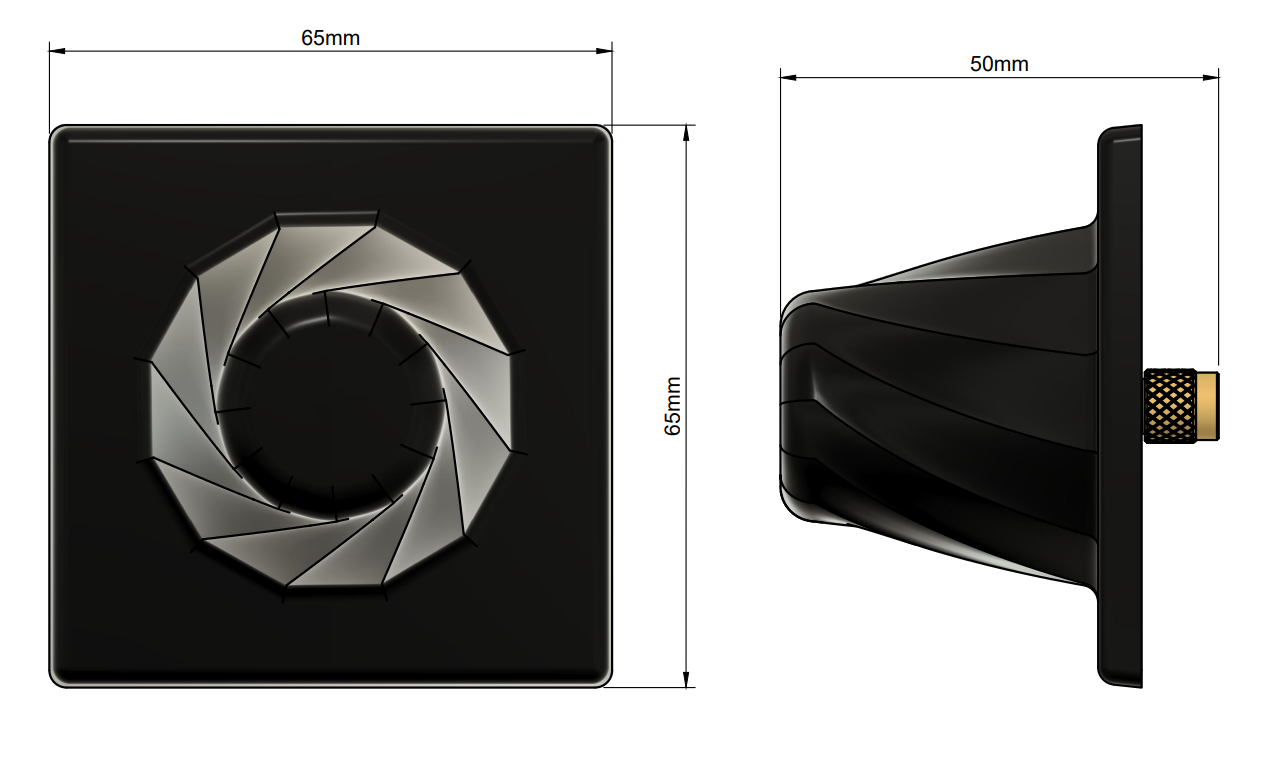

• Dimensions:65mm x 65mm x 50mm
• Weight: xxg



**Coverage where at least 70% of the max range is obtained.
