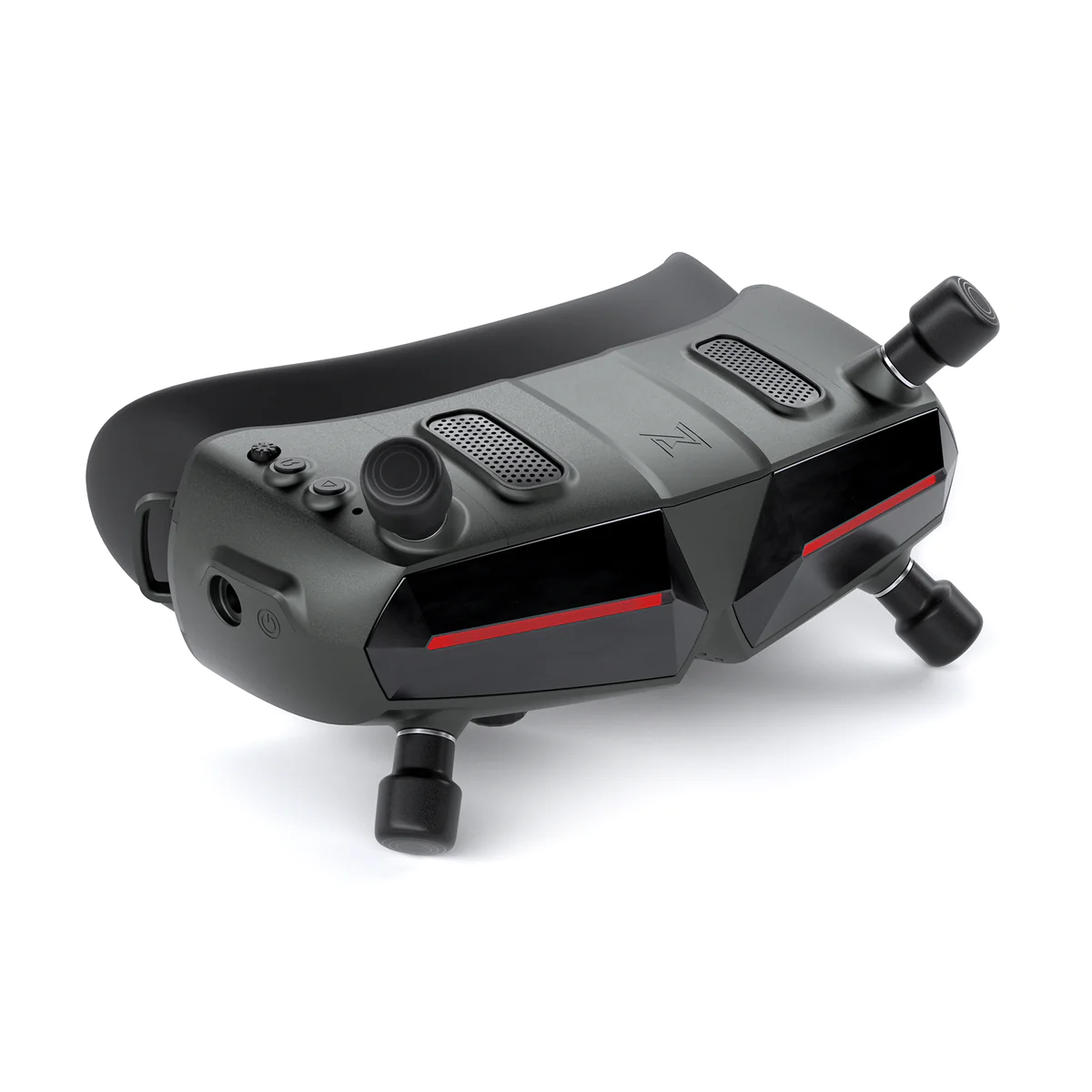

Walksnail Avatar HD Goggles X

Description

New Walksnail avatar HD FPV goggles.

Features

• Weight 290g
• +2 to-6 diopter
• FOV 50°
• Lenses can be replaced
• 7-26V
• 1PD54~74mm
• Front cover DIY
• Infrared Sensing
• 1080P/100FPS
• Sharing mode
• HDMI input
• Replace VRX
• HDMI output
• Built-in Gyro (in development)
• AV in
• Built-in Bluetooth Wi-Fi module (in development)
• Removable upper bay to be able to change boards in the future



Specs

• Communication Frequency : 5.725-5.850GHz
• Transmitter Power(EIRP) : FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
• I/O Interface : HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot
• Transmission Resolution : 1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps
• Code Rate : Max 50 Mbps
• Min. Latency : Average 22ms
• Polarization : LHCP
• Channel : 8
• Screen Resolution : 1920*1080/100Hz
• Screen Material : OLED
• IPD Mechanical Range : 54mm-74mm
• Adjustable Focus Range :＋2.0 to－6.0 Diopter
• FOV : 50°
• Power Input : 7-26V(2S-6S)
• SD card : Support 256G
• System : Avatar HD system
• Foam material : PU
• Built-in WIFI : Yes
• Built-in Gyro : Yes
• Built-in Bluetooth : Yes



Includes:

• One Walksnail Avatar HD Goggles X
• Four singularity stubby LHCP
