Description
Features
- The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
- Updated the design of PCB board and shell, improved the quality of VTX, more durable.
- Optimized the installation place of the antenna, it’s better to protect the VTX.
- The position of the frequency binding button has been changed, to make the frequency binding operation more convenient.
- The kit includes a spare power pad, providing an extra opportunity for soldering.
- The Avatar VTX comes with 32g built-in storage it can record 1080P or 720P HD fly videos without interference. 32G built-in storage, recording video time increased by 4 times.
- New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
Specs
- Communication Frequency 5.725-5.850GHz
- Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
- 1/O Interface JST1.0*4(Power in)JST0.8*6(USB)
- Mounting Holes 25.5*25.5mm; 20*20mm
- Dimensions 33*33*10.5mm
- Storage 32G
- Recording 1080P/720P
- Weight 15.4g
- Operating Temperature -20-40℃
- Channels 8
- Wide Power Input 6V-25.2V
- Supported FC System Betaflight; Inav; Fettec; ArduPilot;Kiss;
- OSD Canvas mode
- Latency Average delay 22ms
- Antenna 2(IPEX)
Includes:
- One Walksnail Avatar HD VTX V2

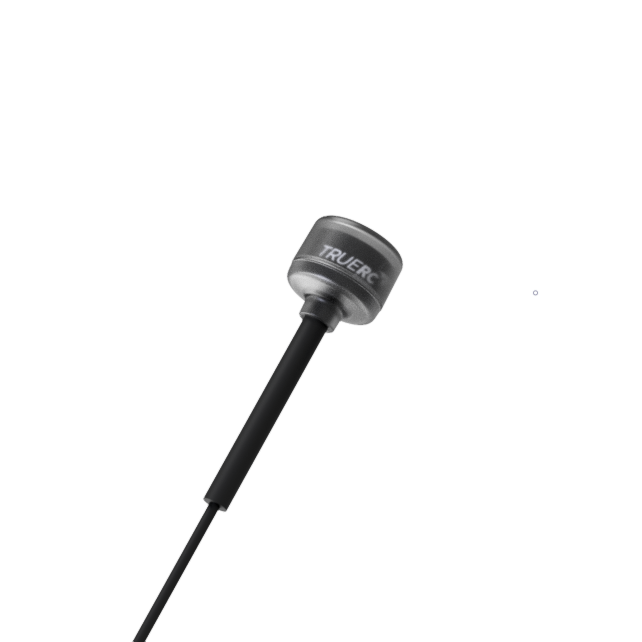

- Two CORE 5.8 w/tube LHCP
