LINE-AIR 1.3

$99.99 (USD)

  • CAD: 142.17$

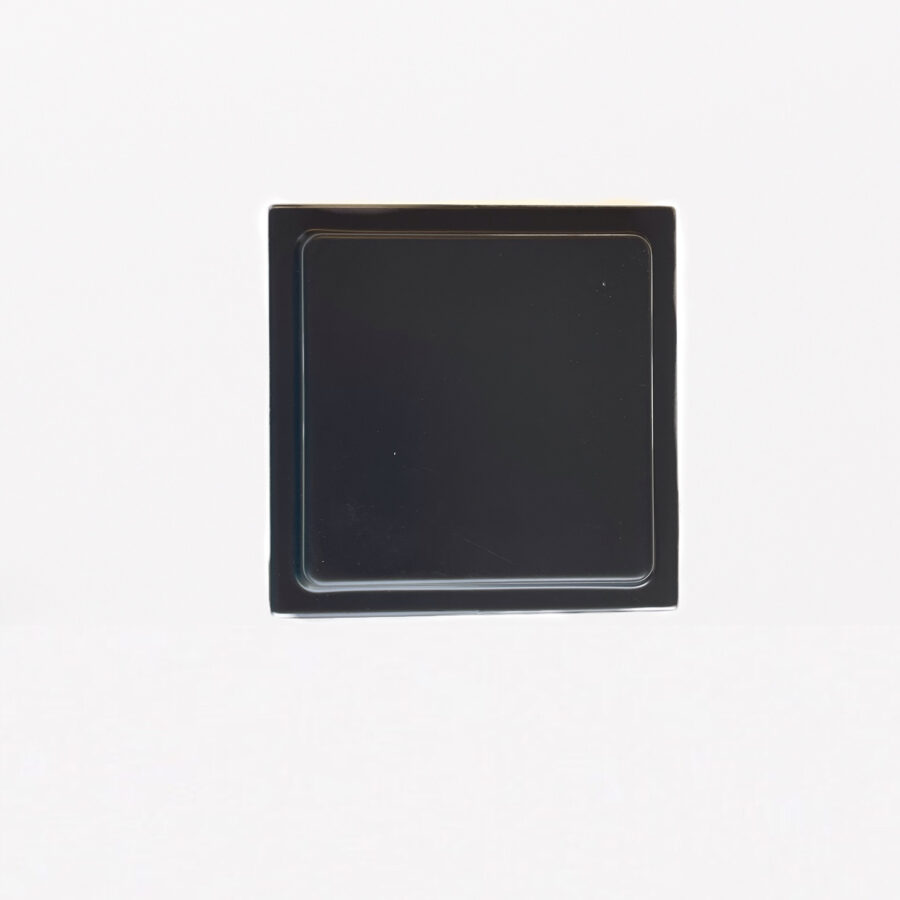

The Line-AIR 1.3  is our latest redesign of the biquad antenna. We managed to pack the famous biquad punch in less than half the typical size.

In stock

Description

The Line-AIR 1.3  is our latest redesign of the biquad antenna. We managed to pack the famous biquad punch in less than half the typical size.  A 1/4-20 mounting point in the back, make that feather weight super easy to attach to your ground station.



Specs

  • Frequency: 1230-1350MHz
  • Gain: 10 dBic
  • Polarization: Linear
  • Radiation efficiency : 99%
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg
  • Connector: SMA male
  • Dimension: 152mm x 152mm x 27mm
  • Mounting: Standard 1/4-20 flush thread
  • Weight: 115g



*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Additional information

Weight 0.154 kg
Dimensions 19 x 19 x 5cm
Polarization

LHCP, RHCP
