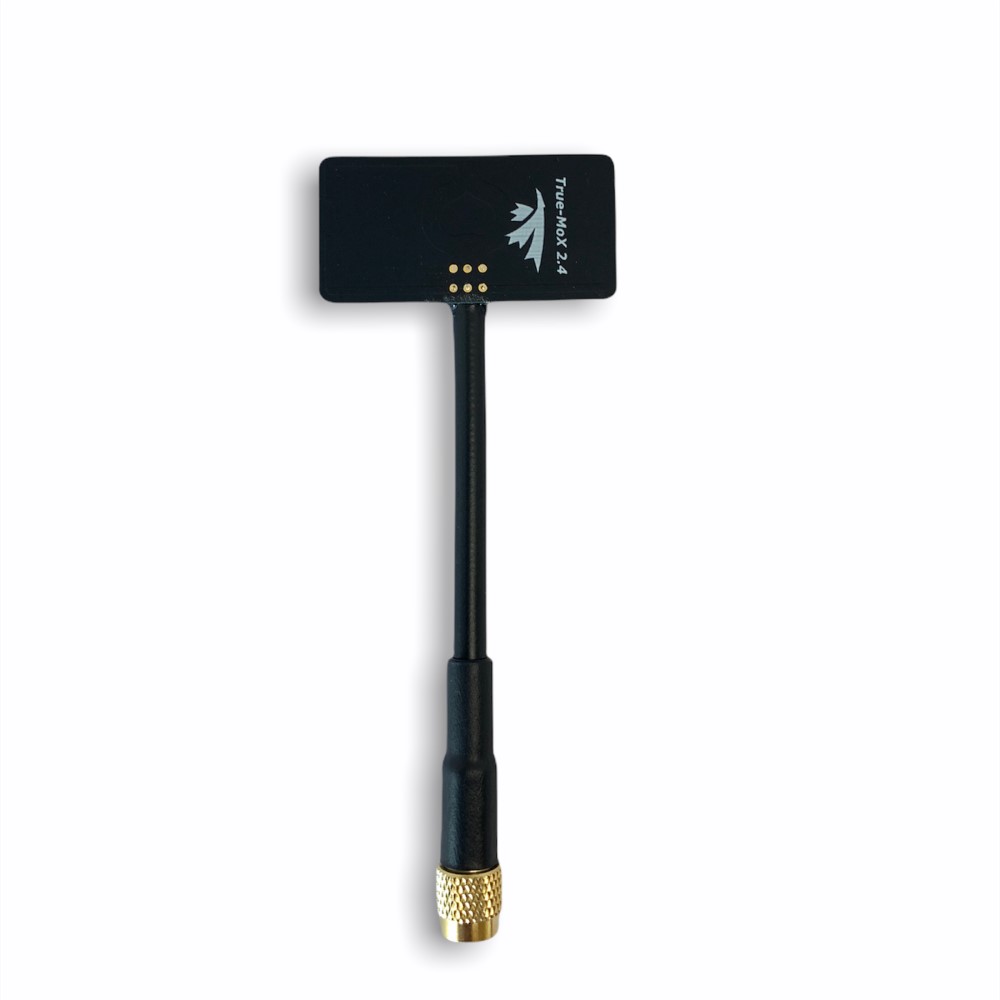

True-MoX 2.4

14.99$

The True-MoX 2.4 is our revision of the moxon using latest 3D electromagnetic simulation tools and RF rated PCB material.

Clear

Description

The True-MoX 2.4 is our revision of the moxon using latest 3D electromagnetic simulation tools and RF rated PCB material. Interactions with radio or pilot’s body are kept at near zero thanks to our patent pending design. Great for IRC Ghost, TBS tracer (RP-SMA) or express LRS (SMA). Note that this is not a patch, do not point the flat part toward the target. Point the long edge of the panel toward the intended flight area. Having the long edge vertical produce vertical polarization

Specs

  • Frequencies: 2400-2510MHz
  • Gain:5.9dBi
  • Beam width*: 156deg
  • Beam width @-3dB**: 133deg ‘
  • Connector: SMA or RP-SMA
  • Dimensions: 39.5mm x 100mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Patent pending.

Additional information

Weight 0.010 kg
Dimensions 12 x 6 x 0.5cm
Connector

SMA, RP-SMA
