New

DUALITY 2.4/5.8 STUBBY for DJI

24.99$94.99$

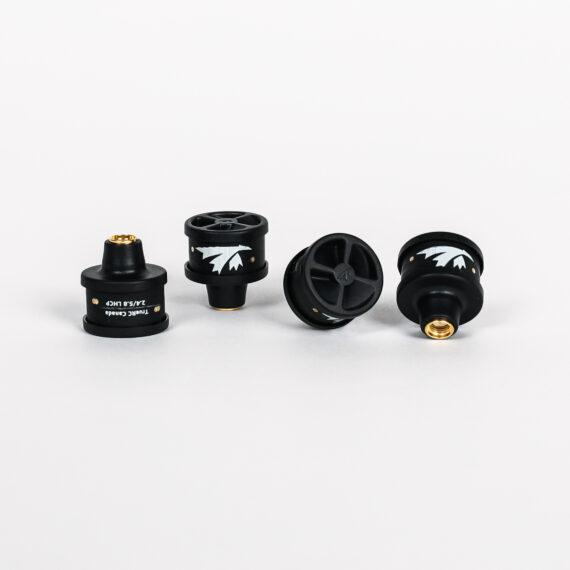

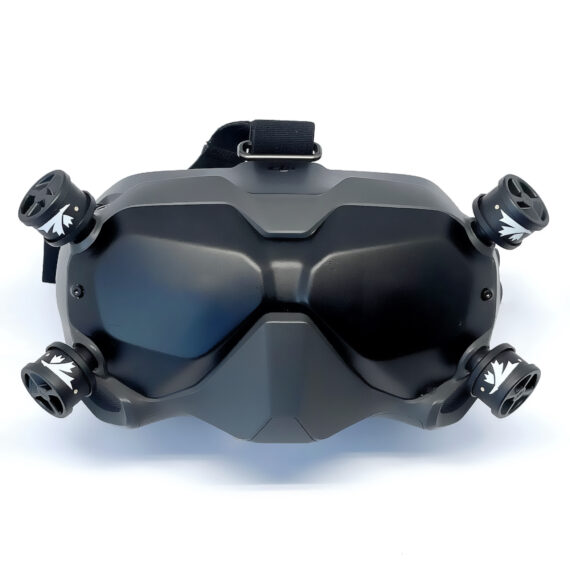

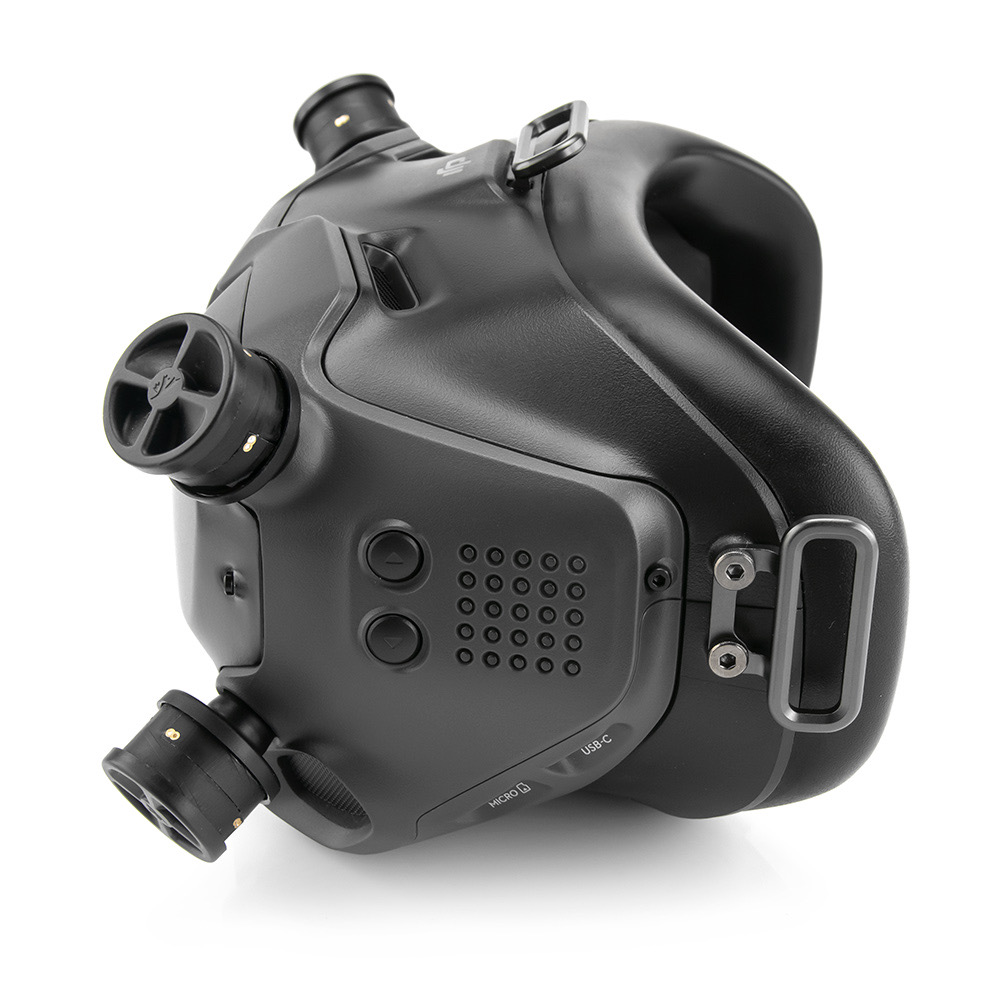

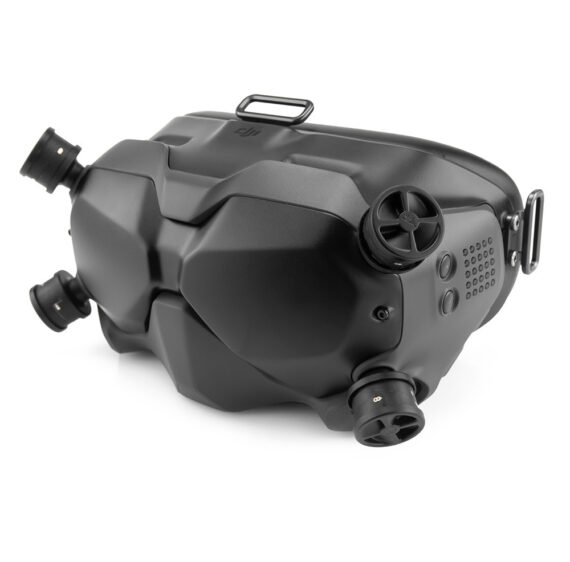

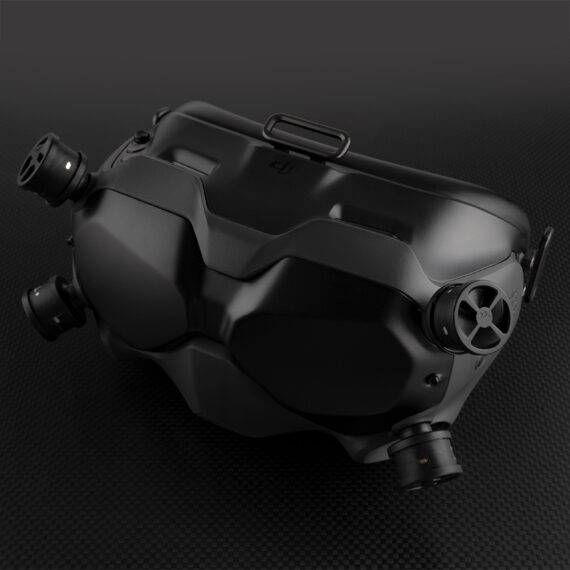

TrueRC never stop! The duality is a dual band CP omni covering both 2.4 and 5.8GHz bands in a single compact stubby package. Drop-in fit on the DJI FPV goggles V2*, letting you leaving them on at all times, thanks to a much lower profile than the stock linear antennas.

Clear

Description

TrueRC never stop! The Duality is a dual band CP omni covering both 2.4 and 5.8GHz bands in a single compact stubby package. Drop-in fit on the DJI FPV goggles V2*, letting you leaving them on at all times, thanks to a much lower profile than the stock linear antennas. Each unit is hand tuned on a professional analyzer so you get the most of your digital HD system.

Specs:

  • Gain: 1.7dBic @2.4GHz, 2.8dBic @5.8GHz
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -15 to -30dB, (2.2%)
  • Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.5:1
  • Weight: 5.25g
  • Dimensions: 23.3mm dia. X 22.0mm height
  • Connector: RP-SMA

US. Pat. 10,804,618; Can. Pat. 2,968,566; and other pending patents.



**The Duality can be used on the DJI FPV goggles V1, however, since they won’t make use of the 2.4Ghz band, we suggest our singularity 5.8 stubby instead.

Additional information

Weight 0.004 kg
Dimensions 15 x 8 x 1.5cm
Polarization

LHCP, RHCP

Connector

SMA, RP-SMA, MMCX, MMCX90, U.FL

Single/4-pack

single, 4-pack
