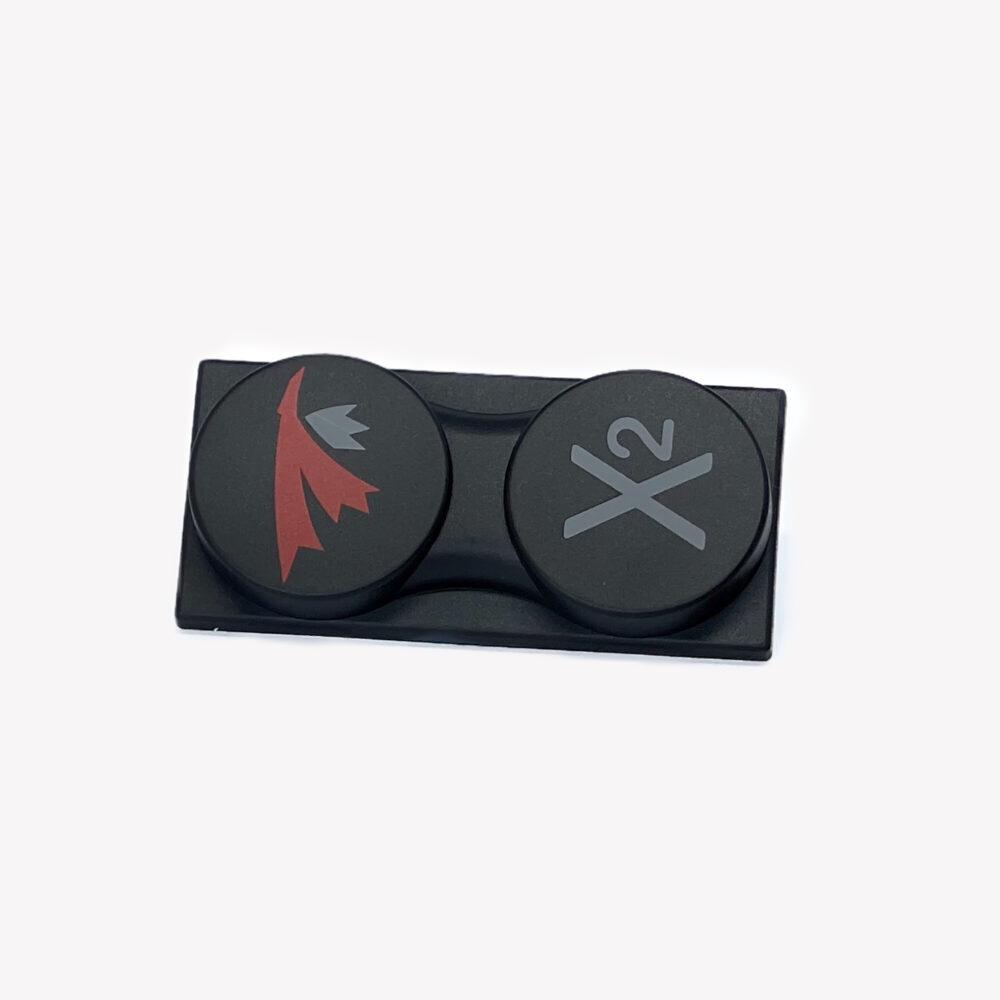

X²-AIR 5.8 MK II

$59.99 (USD)

  • CAD: 82.79$

Following on the latest improvement of the X-AIR 5.8 MK II, this shrunk down X²-AIR is nothing less than the original beside its size.

Description

Following on the latest improvement of the X-AIR 5.8 MK II, this shrunk down X²-AIR is nothing less than the original beside its size. Bringing the high gain and wide horizontal beam in a new compact and light package.



Specs

  • Bandwidth: 5.1GHz-7.0GHz
  • Gain: 13 dBic

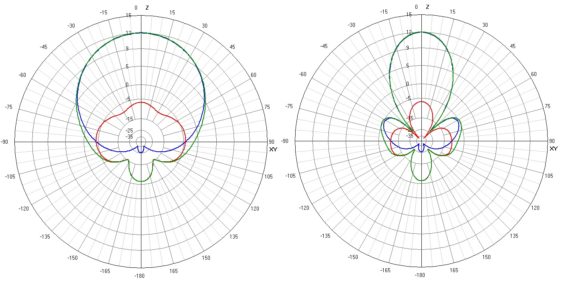

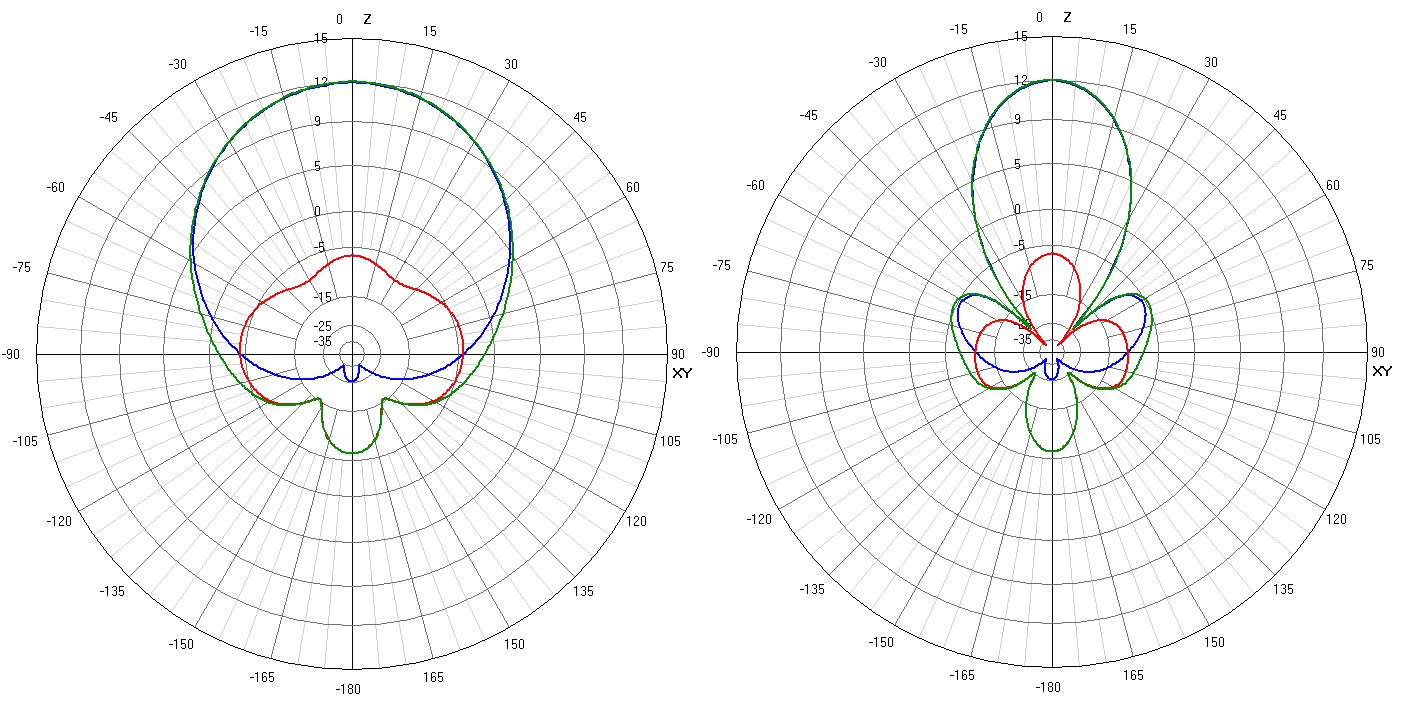

  • Beam-width Horizontal*: 150deg
  • Beam-width Vertical*: 62deg
  • Hor. beam @-3dB**: 74deg.
  • Vert. beam @-3dB**: 34deg.
  • Connector: SMA
  • Dimension: 72mm x 34mm x 22mm
  • Weight: xxg



*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Flights done with TrueRC Canada’s X²-air 5.8:

Additional information

Weight 0.041 kg
Dimensions 15 x 8 x 3cm
Polarization

LHCP, RHCP

Connector

SMA, RP-SMA

Adapter

45deg. SMA, 45deg. RP-SMA
