OCP 5.8

$12.99 (USD)

  • CAD: 17.93$

The OCP 5.8 is our new everyday omni antenna. Proven design, great signal, durable and look amazing. Select polarization, connector and cable below:

Description


The OCP 5.8 is our new everyday omni antenna. Proven design, great signal, durable and look amazing. Available in all popular connector configurations.

Features

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Excellent axial ratio and efficiency
  • Flexible coax cable option that deflect impacts
  • Knurled True-SMA for easy tightening
  • Quality MMCX/90 that snap on DJI fpv securely



Specs:

  • Gain: 1.6dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -10 to -20dB, (3.2%)
  • Bandwidth: 5.6GHz-6.0GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.2:1
  • Weight: Vary with connector/cable option
  • Dimensions(head): 16.5mm dia. x 10.7mm height.
  • Length: Vary with cable option
  • Cable: TrueRC RG316S/RG402/RG178 coax
  • Connector: Reinforced True-SMA/90 male, U.FL, MMCX/90



Useful print!



US. Pat. 10,804,618

Can. Pat. 2968566

Additional information

Weight 0.007 kg
Dimensions 15 x 8 x 0.5cm
Polarization

LHCP, RHCP

Connector & Cable

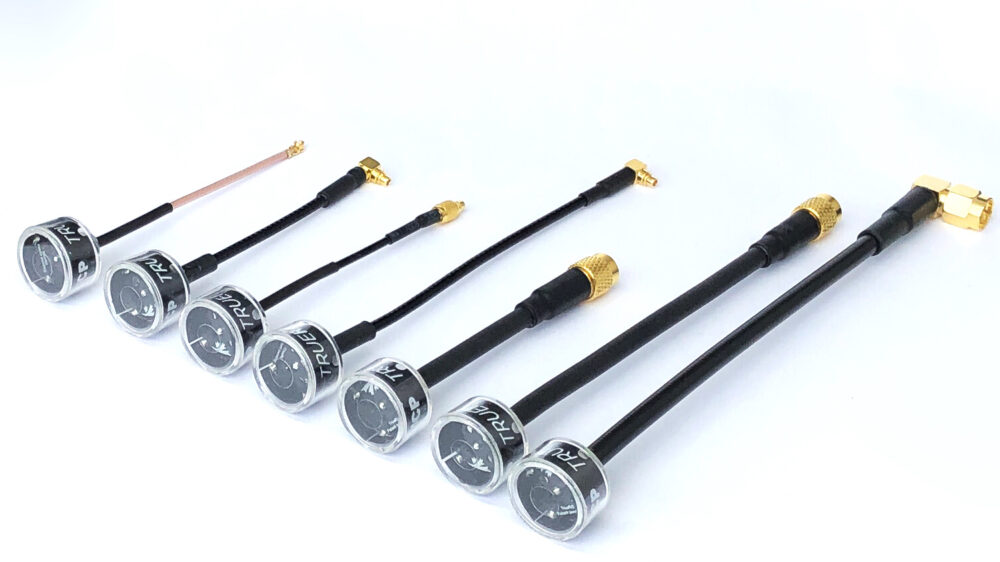

U.FL regular 72mm, U.FL short 36mm, MMCX regular 72mm, MMCX90 regular 72mm, MMCX90 long 110mm, SMA regular 72mm, SMA long 115mm, SMA90 long 140mm, SMA flex regular 72mm, SMA flex long 115mm, SMA extra long 160mm, RP-SMA regular 72mm, RP-SMA long 115mm, RP-SMA extra long 160mm
